treadmill with underarm bars / with handrails
RUN 2011/TR Orthopaedic-PC

{{requestButtons}}

Characteristics

  • Options and accessories:

    with underarm bars, with handrails

Description

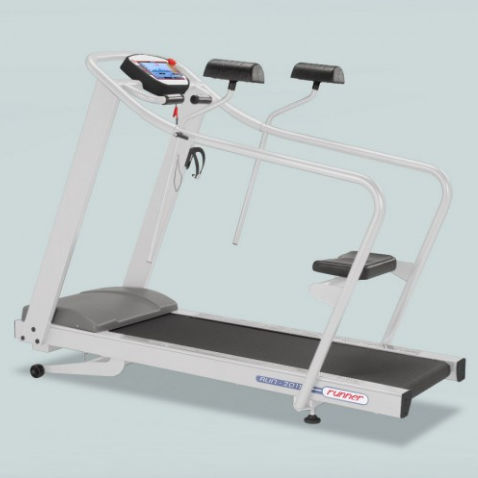

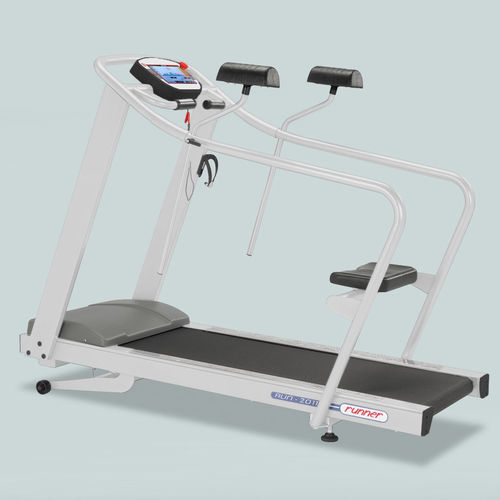

RUN 2011/TR Orthopaedic-PC
Width: 70 cm
Lenght: 188 cm
Height: 142 cm
Weight: 145 kgs
Technical specifications:
- 10.1” touch screen monitor resistive;
- PC iMX6 DL 1GB, Micro SD 8GB, OS Linux;
- USB output;
- RS232 output (Trackmaster protocol);
- Speed Max 20 km/h;
- Speed Min 0.1 km/h;
- Speed Increment 0.1 km/h;
- Inclination Max 22%;
- Inclination Min 0%;
- Inclination increment 0.5 / 1%;
- Electronic variation of speed and inclination;
- Cardio recording: hand grip + chest belt;
- Self-centring belt system;
- Self-lubrication belt system;
- Walking surface: 140 x 48 cm;
- Transformer 1700 VA;
- Inverter 1.5 kw;
- Power supply 220~240Vac 50/60 Hz 10Amp;
- Auxiliary circuit of inclination: 18 Vac;
- Auxiliary circuit of console: 12 Vcc;
- Motor power (max peak) 5 HP (AC);
Absorbed power at max speed 2000 VA;
Nominal absorbed power 1500 VA;
Noise < 30 DB;
Damped board;
User's max weight 150 kgs;
Emergency stop button and pull rope with magnet; Certificate of conformity to EEC93/42 Rule (medical device);
Standard accessories:
Wheels for movement;
Chest belt;
Service equipment;
Long size handrails;
Under arm kit;
Adjustable and removable seat;
Optional accessories:
Harness System;
Ramp;
Software RunnerConnect;
Inclination -3% / +19%;
Console functions (picture 1):
Manual use (picture 2)\
