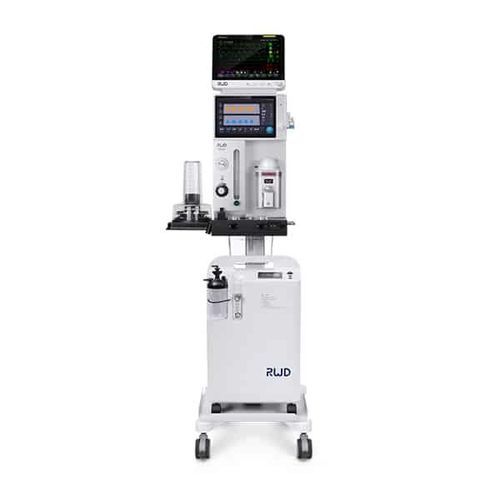

Animal research veterinary anesthesia machine R660

for small animalsfor rodentsfor large animals

Overview
Integrated respiratory anesthesia system designed for veterinary clinical use. The R660 combines a front‑facing ergonomic layout with a compact footprint to provide controlled ventilation and inhalation anesthesia across a broad range of species, from rodents to large companion and production animals.

Key Features

• Four standard ventilation modes: VS, VCV, PCV and SIMV to support diverse surgical procedures.
• 10.1″ interactive touchscreen (1028×800 pixels) with clear visibility up to 2 m for intuitive parameter control.
• Dual‑circuit airway pressure monitoring with a color‑segmented gauge that displays rebreathing and non‑rebreathing circuit pressures simultaneously.
• Color pressure gauge optimized for different animal sizes to assist in preventing airway trauma in small patients.
• Head‑up front layout: all critical components are located on the front panel and are visible and accessible during procedures.
• Two medication filling options: Easy‑fill (standard) and Key‑fill (optional) to reduce drug leakage risk during loading.
• High‑precision vaporizer supplied with individual factory inspection report.
• One‑button operations for circuit switching, APL valve closure and mechanical/manual ventilation changeover.
• Anesthetic waste gas adsorption tank to capture isoflurane and sevoflurane and reduce operating‑room emissions.
• Integrated mounting for monitors, oxygen concentrators and auxiliary equipment to save space.

Technical Specifications

• Model: R660
• Applicable patient weight: 0.4–150 kg
• Dimensions (W × D × H with mobile stand): ≤541 × 354 × 1557 mm
• Weight (including bellows assembly): ≤37 kg
• Touchscreen: 10.1″, 1028×800 pixels
• Ventilation modes: VS, VCV, PCV, SIMV
• Peak airway pressure: 5–50 cmH2O
• Respiratory rate: 2–60 bpm
• I:E ratio: 1:1.0–1:4.0
• Tidal volume: 4–1500 ml
• Trigger pressure: -10 to -0.2 cmH2O
• Trigger flow rate: 0.2–15.0 L/min
• PEEP: 3–20 cmH2O
• Support pressure (SIMV): 3–50 cmH2O
• Dual‑circuit pressure monitoring with color‑segmented gauge

Recommended Applications

• Clinical veterinary anesthesia for dogs, cats, pigs, primates, rodents, reptiles and birds.
• Research laboratories and teaching facilities requiring precise ventilatory control for animal models.

Options and Maintenance

• Optional Key‑fill port, filters and external evacuation connections available.
• Each vaporizer is delivered with a factory inspection report; periodic calibration and maintenance by qualified service personnel recommended.
