real-time thermal cycler / 96-well / compact
Sa Cycler - 96

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product

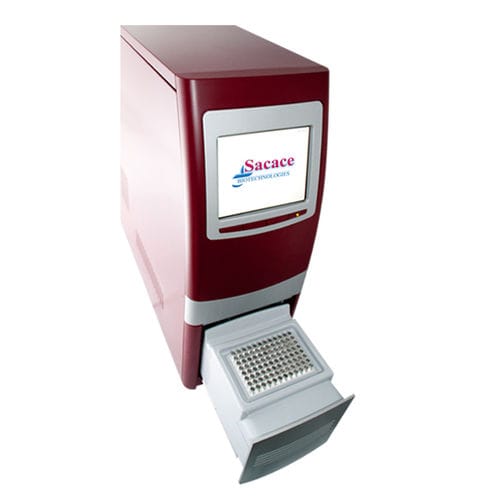

real-time thermal cycler / 96-well / compact real-time thermal cycler / 96-well / compact - Sa Cycler - 96
{{requestButtons}}

Characteristics

  • Technology:

    real-time

  • Number of wells:

    96-well

  • Other characteristics:

    compact

Description

A new instrument for real-time amplification and melting analysis suitable both for research studies as well as for diagnostics applications. Two thermoeletric Peltier elements ensure high accuracy of temperature regulation and noiselessness.
The unique design and project of the thermal block allows loading and unloading of test samples in a completely automated software-controlled way.

Features
• 5 fluorescence channels multiplexing for discrimination of up to
five targets in a single reaction well
• Strong flexibility thanks to the 96-well format suited for standard
PCR microplates, test tubes and strips
• Possibility to use tubes with different heights with regulation of the
matrix block
• Optimal signal/noise ratio and absence of crosstalk ensured by the
unique design of the optical track including a separate light source
for each channel and a matrix CCD camera
• Light emitting diodes (LED) as a light source with a lifetime of
about 100,000 hours that does not require maintenance or constant
monitoring
• Wide dynamic range of detection using multiple exposure method,
which leads the optimization of signal registration conditions to a
whole new level, greatly simplifying or even eliminating the need
for fluorescence settings
• Main applications are Real-Time quantitation, single nucleotide
polymorphisms (SNPs) genotyping, melting curve and gene
expression analysis
• Instrument comes with the most used Sacace protocols already
installed in the software minimizing possibility of error during
programming.

Quantitative analysis with the use
of calibration standards, allows
to determine the quantity of DNA
target in the sample
