Orthopedic surgery instrument kit SI-1444

traumatologystainless steelautoclavable

Overview

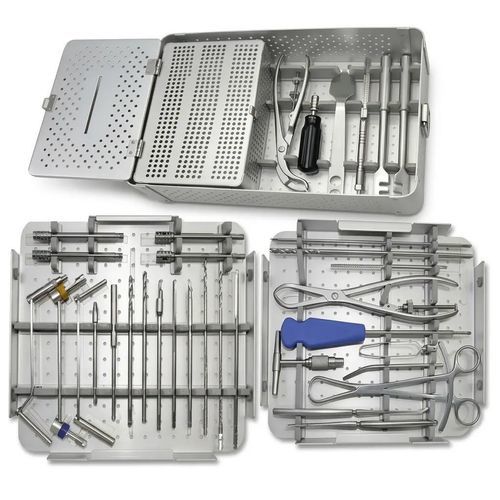

The Large Fragment Orthopedic Instrument Set SI-1444 is a comprehensive trauma instrument kit for fixation with 4.5 mm cortical and 6.5 mm cancellous large-fragment screw systems. Supplied in a surgical sterilization box, the set includes drilling, tapping, guiding, measurement, reduction and plate-contouring instruments designed for intraoperative plate fixation workflows.

Key Features

• Complete configuration for large-fragment procedures: drilling, tapping, guide sleeves, depth measurement, reduction, retraction, plate bending and screw handling
• Two Ø3.2 mm and two Ø4.5 mm drill bits (150 mm) for pilot and primary holes
• Cortex 4.5 mm and cancellous 6.5 mm taps for thread preparation before screw insertion
• 4.5 mm DCP drill guide with neutral and load modes for dynamic compression plating
• Universal and double drill sleeves in standard large-fragment sizes
• Three bending templates (11×120, 12×155, 12×212 mm) for plate pre-shaping
• Depth gauge 0–90 mm for accurate screw length selection
• Ratchet reduction forceps (pointed and serrated) and self-centering bone holding forceps
• Periosteal elevators and Hohmann retractors for soft-tissue management and exposure
• Hexagonal 3.5 mm screwdriver, extraction screw, quick-coupling T-handle and screwdriver shaft for screw placement and removal
• 8 mm hollow reamer for cannulated socket preparation
• Surgical sterilization box with organized trays for storage and processing

Instrument Categories

• Drilling and Drill-Guiding Instruments — two Ø3.2 mm and two Ø4.5 mm drill bits (150 mm); Universal Drill Guide Ø3.2/4.5; Double Drill Sleeve Ø3.2/6.5; 4.5 mm DCP Drill Guide (neutral and load); Countersink Ø8.
• Tapping Instruments — Tap Cortex 4.5 mm; Tap Cancellous 6.5 mm.
• Measurement Instruments — Depth Gauge 0–90 mm; bending templates 11×120 mm, 12×155 mm, 12×212 mm.
• Reduction and Bone-Holding Instruments — Ratchet reduction forceps (210 mm: pointed and serrated); self-centering bone holding forceps (260 mm, 2 pcs); screw forceps.
• Retraction and Periosteal Elevation Instruments — Hohmann retractors (44 mm, 2 pcs); periosteal elevators 8 mm round and 16 mm flat.
• Screw Insertion and Removal Instruments — Hexagonal 3.5 mm screwdriver; screwdriver shaft 4.5; quick coupling T-handle; extraction screw for hexagonal 3.5 mm (conical).
• Plate Contouring Instruments — Bending iron (L/R) and three bending templates for intraoperative contouring.
• Storage and Sterilization — Surgical sterilization box with perforated inner tray lid and instrument trays.

Complete Set Contents

• Drill Bit Ø3.2 × 150 mm — 2
• Drill Bit Ø4.5 × 150 mm — 2
• Countersink Ø8 — 1
• Tap Cortex 4.5 mm — 1
• Tap Cancellous 6.5 mm — 1
• Screw Forceps — 1
• 4.5 mm DCP Drill Guide (neutral and load) — 1
• Double Drill Sleeve Ø3.2/6.5 — 1
• Universal Drill Guide Ø3.2/4.5 — 1
• Template 11 × 120 mm — 1
• Template 12 × 155 mm — 1
• Template 12 × 212 mm — 1
• Depth Gauge 0–90 mm — 1
• Extraction Screw for Hexagonal 3.5 mm (conical) — 1
• Hollow Reamer 8 mm — 1
• Screwdriver, Hexagonal 3.5 mm — 1
• Reduction Forceps with Points, Broad, Ratchet, 210 mm — 1
• Reduction Forceps with Serrated Jaw, Ratchet, 210 mm — 1
• Self-Centering Bone Holding Forceps, 260 mm — 2
• Periosteal Elevator 8 mm, Round — 1
• Periosteal Elevator 16 mm, Flat — 1
• Hohmann Retractor, Width 44 mm — 2
• Bending Iron L/R — 1
• Quick Coupling T-Handle — 1
• Screwdriver Shaft 4.5 — 1
• Surgical Sterilization Box — 1

Materials and Construction
Instruments are manufactured from premium German stainless steel. A surgical sterilization box with organized trays and a perforated inner lid is supplied to support sterilization workflows. The manufacturer does not specify a detailed steel grade on the product page.

Technical specifications

• Intended fixation systems: large fragment plates and screws (4.5 mm cortical, 6.5 mm cancellous)
• Drill bits: Ø3.2 mm (×2) and Ø4.5 mm (×2), length 150 mm
• Depth gauge range: 0–90 mm
• Bending templates: 11×120 mm, 12×155 mm, 12×212 mm
• DCP drill guide: 4.5 mm with neutral and load modes
• Drill sleeves: universal Ø3.2/4.5 and double Ø3.2/6.5
• Taps: Cortex 4.5 mm, Cancellous 6.5 mm
• Reduction forceps: ratchet type, 210 mm (pointed and serrated)
• Bone holding forceps: self-centering, 260 mm (2 pcs)
• Hohmann retractors: width 44 mm (2 pcs)
• Hollow reamer: 8 mm
• Screwdriver drive: hexagonal 3.5 mm; includes screwdriver shaft 4.5 and quick-coupling T-handle
• Surgical sterilization box with perforated inner tray lid and instrument trays
• SKU: SI-1444
