Disinfection booth SB002

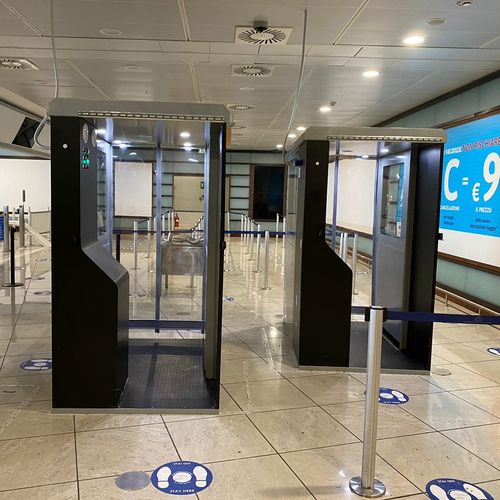

The Sanitation Booths for Airports have been designed to limit the spread of pathogens such as bacteria and viruses in all facilities with a high number of visitors. Made with a painted steel structure, they are generally positioned in such a way that an obligatory passage is created for the public. A camera with a temperature sensor is able to check body temperature in less than two seconds, while a facial recognition software ( accessory ) allows, if connected to an external computer, to store the data of the people who access the structure. Once free access has been obtained by means of an audible and visual signal, the visitor passes inside the environment where the sanitization takes place. The products used can be potassium hypochlorite or euclorine . The treatment lasts 30 seconds and thanks to the automatic timing the exit door opens automatically. Thanks to the Mitsubishi FX5U-64 PLC control unit it is possible, by sending the data to the cloud or to a connected computer, to obtain the list of visitors with their profiles. The machine has the following dimensions: 1500 * 1500 * 2450mm (L * W * H) and a weight of 600 Kg. The machine requires a connection to the water and electricity mains.
