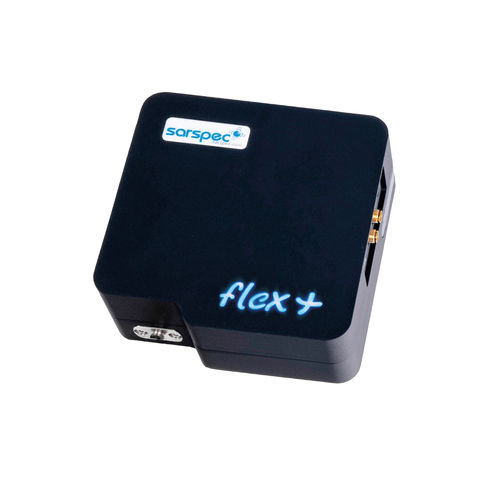

UV-Vis-NIR spectrometer FLEX+
UV-visfluorescencefiber optic

UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
Add to favorites
Compare this product


UV-Vis-NIR, UV-vis, fluorescence, fiber optic, Czerny-Turner, near-infrared, visible, optical, UV
for the food industry, for research, for the pharmaceutical industry, for environmental analysis, medical, for quality control, for teaching, for toxicology, for biochemistry, for life sciences applications
tungsten, xenon, halogen, LED
Detector type
compact, miniature, transportable
Other characteristics
high-resolution, with USB port, computer-based

Max.: 1,100 nm

Min.: 185 nm


110 mm (4.3 in)


40 mm (1.6 in)


750 g (26.5 oz)


When speed and sensitivity are combined in a small optical bench Ideal for Low Light-Level Applications User-Interchangeable Slits and Optical Filters Fast Acquisition – Up to 2587 Spectra per Second Software LightScan Included addition to the great performance and flexibility of the FLEX series, FLEX+ series is a more sensible solution for low-light-level applications that require high performance and wide dynamic range such as low emissive fluorescence measurements. The Hamamatsu back-thinned CCD detector has 1-mm height pixel elements, which provides higher sensitivity and delivers high quantum efficiency (around 80% at the maximum) with a great signal-to-noise ratio. Combining the high sensitivity with fast acquisition (up to 2587 spectra per second) and features such as power status indicator, user-interchangeable slits and optical filters, or plug-and-play operation deliver simplicity and versatility to all the setups that include this system. FLEX+ spectrometer is available in a ready-to-use (for more common applications) and user-customized (for more specific applications) configuration for narrow UV-Vis and Visible-NIR range and extended UV-Vis-NIR range. General purpose solution with a PLUS The FLEX+ is the full package of the FLEX series but with extra sensitivity and speed, which makes this spectrometer ideal for users that require fast and more sensitive light detection. The ideal solution for low light-level applications The Hamamatsu back-illuminated CCD detector used on FLEX+ has great performance advantages such as low dark counts. The 1 mm height pixel elements on the detector provide higher sensitivity for low-light-level applications.


3 Pages
3 Pages
2 Pages
