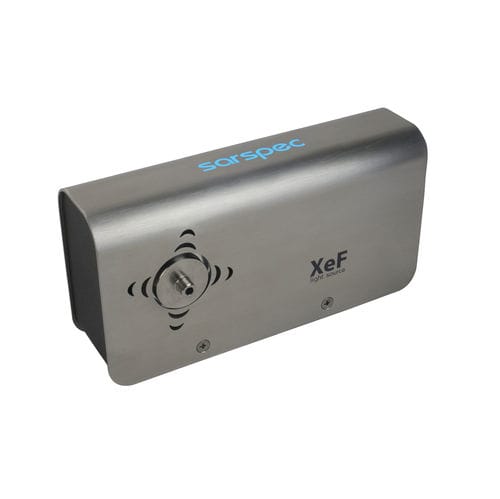

Excitation light source LS-XeF

for spectroscopyxenoncompact

UV-Vis-NIR Spectral Range High Radiant Intensity Remote control with SPEC Hub Optical Fiber Connector Small, powerfull and reliable High Flash Rate The flexibility of this light source makes it a great solution for fluorescence measurements due the ability to deliver high energy pulses in the UV range. High power for UV excitation The flexibility of this light source makes it a great solution for fluorescence measurements due the ability to deliver high energy pulses in the UV range. High flash rate LS-XeF stands a maximum pulse rate of 278 Hz with high intensity and pulse-to-pulse stability that provides an excellent performance for long-duration measurements. Easy integration in your spectroscopic setup The new SPEC Hub provides the ideal solution to synchronize the operation of LS-XeF with the data collected by Sarspec’s spectrometers. Alternatively, LS-XeF can be triggered with any external TTL positive pulse generator. Technical Information ç Parameter Value Wavelength Range 190 – 2000+ nm Xenon flashlamp lifetime 1 000 000 000 flashes Maximum repetition rate 278 Hz Local Operation Intensity controller Trigger input SPEC Hub or an external TTL positive pulse Flash output 48.6 mJ Typical Applications LS-XeF is a powerful UV-Vis-NIR source that exceeds the demands for absorbance, reflectance, and fluorescence measurements. The spectral output provided by the pulsed xenon lamp is stable and offers high efficiency for a wide range of educational, scientific, and industrial spectroscopic applications. Find out more about the flexibility of our measurements setup using XeF light source in our Application Notes database.
