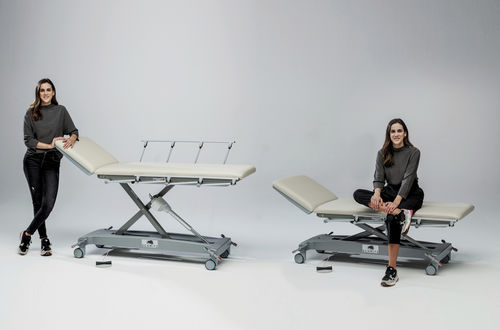

General examination couch 211.4200.1/211.4210.1
electricwith adjustable backrestheight-adjustable

general examination couch
general examination couch
Add to favorites
Compare this product


Characteristics

Applications
general
Operation
electric
Features
with adjustable backrest, height-adjustable, mobile
Number of sections
2-section
Color
beige, black, yellow, blue, gray, white, green, red, brown, orange, pink, violet
Weight capacity

Max.: 225 kg
(496 lb)

Length

1,950 mm
(76.8 in)

Width

Max.: 800 mm
(31.5 in)

Min.: 650 mm
(25.6 in)

Height

Max.: 920 mm
(36.2 in)

Min.: 500 mm
(19.7 in)

Mattress thickness

70 mm
(2.8 in)

Description

- Large and ergonomic height adjustment range - No displacement of table-top during height adjustment - Moulded base provides generous legspace Examination and Treatment Couch height adjustment from 500 to 920 mm by means of hand or foot control unit with safety double-clicking action, safety ON/OFF switch to turn control element on or off Servo-assisted head section adjustment from –20° to +40°. 2-section upholstery 70mm thick, 650 or 800 mm wide, leatherette cover acc. to SCHMITZ colour chart. Powder coated chassis in RAL 9006, RAL 9007 or RAL 9002. Silver-grey plastic chassis cover. With 4 levelling feet, not electrically conductive, optional mobility with 4 closed double castors Ø 100 mm, 2 of which el. conductive, central lock per axis, 1 castor with directional lock. Safe working load: 225 kg Optional accessories: Side guards, pair 200.0400.0 length: 990 mm, folding down to below top of mattress, powder coated white aluminium RAL 9006. Holder for foot control 200.0006.0 of steel, powder coated white aluminium RAL 9006, upside-down mounting to prevent accidental triggering Paper roll holder 200.0930.0 for paper roll up to 590 mm wide. Paper roll 200.1030.0 500 mm wide. Edge protection 200.0410.0 of plastic, grey, at all four upholstery corners Head section with nose outlet 200.0500.0 Filler for nose outlet 200.0510.0 Side rail (piece) 200.4402.0 mounting either side, 25 x 10 x 750 mm, max. charge 30 kg ECG shield 200.0251.0 / 200.0252.0 with one potential equalization sockets each LHS and RHS as well as screening plate to reduce disturbance, suitable for 650 / 800 mm wide couches. SCHMITZ – Your partner for medical furniture
