Manual slide table NH

linear arraypositioning

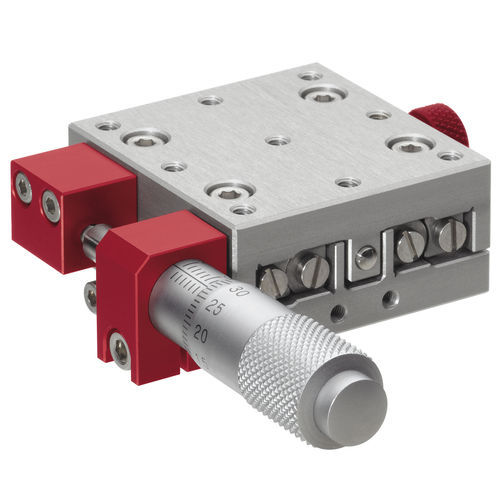

Square top and bottom components allow for easy extension Assembly as a 2-axis table possible Type NH single-axis positioning table is equipped with SCHNEEBERGER Type R2-RF longitudinal guideways. Manual stroke adjustment is by means of a micrometer, with the top part held in position by a spring against the micrometer. The reading accuracy on the micrometer is 0.01 mm. The NH positioning tables consist of square top and bottom parts. This enables easy assembly as a 2-axis table. The table parts are made of aluminum. Type NH can be set up horizontally and vertically.
