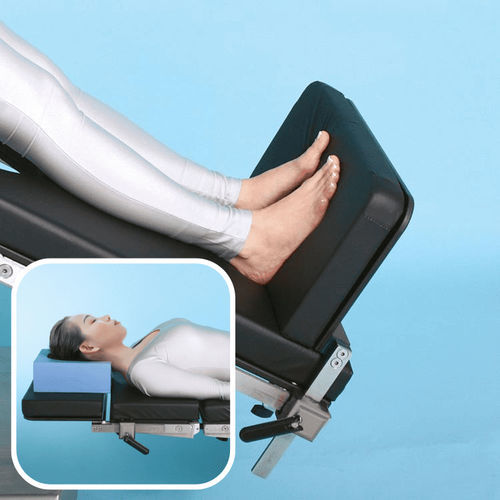

Incredibly useful accessory for the operating room. Can be used horizontally as a table extension and vertically as a foot support for reverse Trendelenburg positions to optimize surgical patient positioning. Deluxe 2″ (5 cm) pad included. Two required Simple Clamps sold separately. 20"W x 10"L (51 cm x 25 cm).
Fits all O.R. tables
Can be used vertically or horizontally
INTENDED USE
Foot Extension mounts horizontally as table extension or vertically as foot support when using reverse Trendelenburg. The intended users of this device are medical professionals within hospitals and surgery centers.
INSTRUCTIONS FOR USE
Become familiar with features of patient positioning device before use with patient. Always practice use on a nurse, physician or appropriate volunteer prior to using clinically.
Attaching Foot Extension to Surgical Table
Insert mounting posts into Simple Clamps on both sides of tables
Turn handle clockwise to tighten clamps
Detaching Foot Extension from Surgical Table
Turn simple clamp handle counterclockwise to loosen foot extension
Lift foot extension from operating room table and store properly
GENERAL INFORMATION
Product not made with (NRL) Natural Rubber Latex
Device supports 500 lb. (227 kg) proportional patient load (6'4" (193 cm) tall patient per 99% human body model)
Product warranty covers product from manufacturing defects for period of 2 years
CE marked medical device according to MDR (EU) 2017/745
Product is maintenance-free, check product condition before next use
Life of device is 5 years under normal use
Store device between -4°F to +86°F (-20°C to 30°C)
