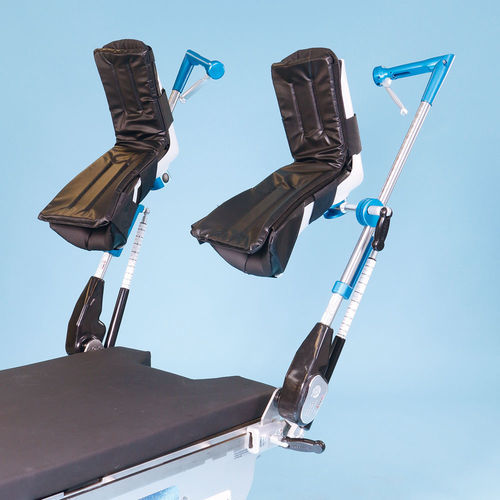

The mounting blade design quickly and easily inserts into side-rail clamps. The Great White Robotic Stirrups’ range of motion is 55° low lithotomy to 60° high lithotomy. Adduction 9° and abduction 25° and also externally rotates out 20°, with the control to lock the medical stirrup for positioning anywhere in between. Two required SpringLoc Clamps sold separately.
600 lb (272 kg) patient weight capacity
Rotates on three axes
Flexible boot accommodates larger patients
Lift assist allow easy control with minimal effort
GENERAL INFORMATION
Product not made with (NRL) Natural Rubber Latex
Device supports 600 lb. (272 kg) proportional patient load (6'4" (193 cm) tall patient per 99% human body model)
Product warranty covers product from manufacturing defects for period of 2 years
CE marked medical device according to MDR (EU) 2017/745
Life of device is 5 years under normal use
Store device between -4°F to +86°F (-20°C to 30°C)
DISPOSAL
General - Prevent infection by cleaning and disinfecting product before disposal
Packaging - Dispose packaging material via household waste according to national requirements
SchureMed accepts back used or retired products - or dispose of product in accordance with national requirements
