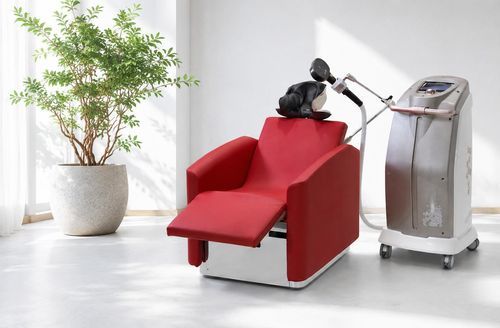

TMS + rTMS transcranial magnetic stimulator Blossom TMS™

magnetic

Overview
The Blossom TMS™ Therapy System is a clinical transcranial magnetic stimulation (TMS) platform for outpatient psychiatric and neurological therapy. FDA-cleared and CE-marked. Designed for clinics and hospitals, it provides multi-model stimulation options and predictable ownership without pay-per-use licensing or mandatory coil replacement.

Key features

• Reliable, high-performance rTMS stimulators with intuitive operation
• High-throughput capability with liquid-integrated coil cooling for back-to-back sessions
• Touch interface and streamlined workflows for clinical integration
• Durable coils with no expiration dates to stabilize operating costs
• No mandatory disposable components or forced coil purchases

Clinical benefits

• FDA-cleared device (where indicated)
• Non-invasive treatment — no surgery or anesthesia required
• Drug-free therapy option suitable for eligible patients
• Short typical session durations: approximately 18–37 minutes
• Well tolerated with minimal systemic side effects reported
• Outpatient procedure — no hospitalization typically required
• Patients may resume normal activities immediately after treatment

Available stimulation units

• MODEL M-10: 0–10 Hz rTMS
• MODEL M-30: 0–30 Hz rTMS
• MODEL M-50: 0–50 Hz rTMS & Theta‑Burst protocols
• MODEL M-100: 0–100 Hz rTMS & Theta‑Burst protocols

Coils & cooling

• Figure-8 stimulation coil, liquid-cooled
• Integrated liquid cooling system optimized for high-throughput clinics

System & workflow

• TMS Therapy Cockpit for treatment management and session tracking
• Touch interface for intuitive control
• One-hand coil positioning with snap-lock for repeatable placement
• Caps and motor threshold (MT) assistance on board for mapping and guidance
• 80 pre-installed protocols (FDA-cleared protocols pre-loaded where applicable)
• Patient and protocol lists for reporting and easy parameter control
• Provided resources: tutorials, clinical instructions, and marketing materials

Technical specifications

• Maximum stimulation frequency: 100 Hz
• Dimensions (H×W×D): 40.6 × 25.7 × 25.3 in (103 × 65 × 64 cm)
• Weight: 120 lb (60 kg)
• Input power: 1×120 VAC 60 Hz or 1×230 VAC 50–60 Hz
• Cooling technique: liquid, integrated
• Mobility: 4 lockable wheels
• Interface: touch screen
• Coil positioning: one-hand operation with snap lock
• Included: 80 pre-installed protocols; compatible with all system coils; patient/protocol reporting lists
