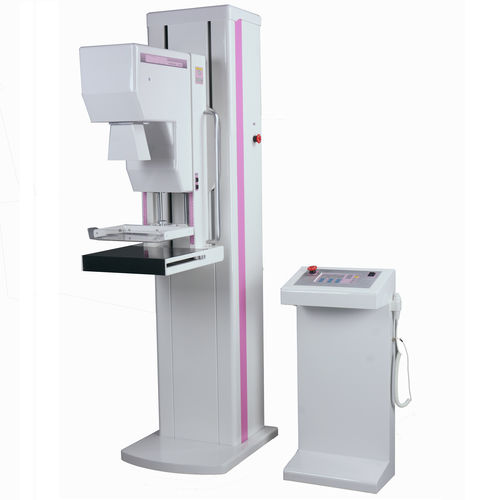

analog mammography unit
XM-4000B

Add to MyMedicalExpo favorites
Compare this product
analog mammography unit analog mammography unit - XM-4000B
{{requestButtons}}

Characteristics

  • Mammography type:

    analog

Description

Specifications:

X-ray Generator

Generator Type: High Frequency Inverter 40kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point : 20-35kV/10-100mAs
Power Rating: 3.6kW


X-ray Tube

Model: IAE C339V
Focal Spot Size: Dual Focus 0.1 / 0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 300kHU
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)


Radiographic Stand

C-ARM: Vertical Movement: 580mm
Rotations Deg: +175° ~-180°
SID: 650mm


Cassette Image Receptor

Bucky Device: 18×24cm Bucky drivemechanism
Grid Ratio: 5: 1, 30 Line/cm


Comfortable Compression

When some degree of pressure is required for radiography, it allows you topresser the appropriate pressure (up to a maximum of 20kg) and is equipped withMICOM Control's Soft-touch system which is designed to minimize the discomfortof the examine with in the pressure range.
