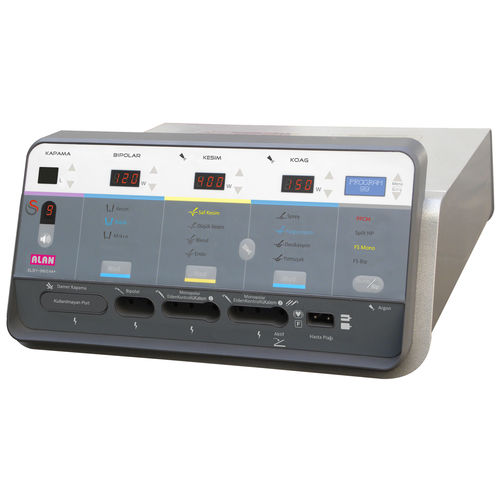

Cutting electrosurgical unit ELSY-360M+
bipolar coagulationmonopolar coagulationvessel-sealing

cutting electrosurgical unit
cutting electrosurgical unit
Add to favorites
Compare this product


Characteristics

Features
cutting, bipolar coagulation, monopolar coagulation, vessel-sealing, desiccation
Medical procedure
laparoscopic surgery, veterinary surgery
Technology
argon plasma
Cutting power

Max.: 400 W

Min.: 0 W

Coagulating power

Max.: 150 W

Min.: 0 W

Frequency

Max.: 660 kHz

Min.: 550 kHz

Description

Alan ELSY 360M+ is a monopolar, bipolar and vessel sealing electrosurgical device designed to use in operating rooms. Technical Specifications - 400 Watt output power - Patient plate warning system - Voice level adjustment - Vessel sealing function - Simultaneous monopolar coagulation - Optional Argon and smoke evacuation connection - 100 records for both profile and alarm - Auto start/stop bipolar coagulation Performance MONOPOLAR COAGULATION MODES Spray 120W / 500 Ohm Fulguration 150W / 500 Ohm Desication 120W / 500 Ohm Soft 120W / 200 Ohm MONOPOLAR CUT MODES Pure Cut 400W / 300 Ohm Low Cut 300W / 300 Ohm Blend Cut 250W / 300 Ohm Endo Cut 200W / 200 Ohm BIPOLAR MODES Cut 120W / 100 Ohm Macro 100W / 100 Ohm Micro 100W / 100 Ohm Physical Features - Dimensions : 280 x 350 x 150 mm - Weight: 4,2 kg Accessories List - 1 pc power cord - 1 pc wireless triple footswitch - 1 pc reusable monopolar pencil - 1 pc bipolar forceps - 1 pc bipolar cable - 1 pc patient plate cable - 1 pc laparoscopic adaptor - 1 pc ligasure adaptor
