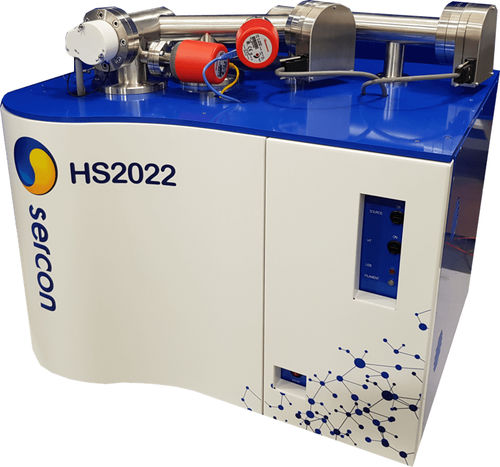

The HS2022 is the most sensitive small radius IRMS in the world. Combining superior analytical performance with reliability, flexibility, ease of use and maintenance, the HS2022 IRMS ensures that all your scientiﬁc needs are met. Backed by over 20 years of development with a no compromise approach to its engineering integrity, Sercon provides the ultimate isotope ratio mass spectrometer. This technology is available in both continuous ﬂow and dual inlet mode, and can be interfaced to a wide range of sample preparation devices and inlets. The HS2022 IRMS incorporates many high level design features, including an extremely robust, linear and sensitive source, a stainless steel flight tube, a thoria-coated filament, and high resolution amplifiers for a large dynamic range.
All stainless steel and metal gasket construction flight tube for ultra-high vacuum purity to ensure minimal backgrounds and low water contamination.
True differential pumping for superior ion transfer through the flight tube from the high sensitivity source to the large dynamic range collectors.
Mass range from 2 to 96 amu – suitable for the analysis of light stable isotopes in the commonly measured gases H2, N2, NO, N2O, O2, CO, CO2, SO and SO2.
Universal Faraday triple collectors for simultaneous collection of adjacent masses 28,29,30 to 64,65,66 with no adjustment of collectors. Additional single Faraday collector and high gain ampliﬁer for m/z 3 on the hydrogen spur.
Large dynamic range amplifiers and high sensitivity source ensure a large range of sample sizes can be measured.
APPLICATION - GEOLOGICAL SCIENCES
APPLICATION - FOOD ANALYSIS
APPLICATION - ENVIRONMENTAL
