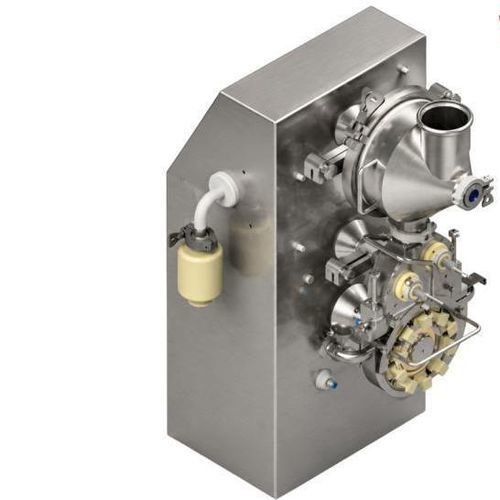

Powder dosing unit ZEPHYR

for granuleslaboratorymedical

POWDER/GRANULE DOSING TECHNOLOGIES — Vacuum Pressure Dispensing
ZEPHYR, SETIN Equipment's precision powder dispenser, engineered for granules and powders with great accuracy and reliability.
Powder coring by vacuum and positive pressure ejection. Suitable for high-productivity applications as well as small production batches. Removable and replaceable format without replacing the disc. Patented system.

Dosage: from 50 mg to 2000 mg
Productivity: up to 150 vpm
Disk diameter: 200 mm
Disk format: from 5 to 10 formats
Exceptional accuracy: up to 5% dosing error rate

Intuitive Design
Larger air/vacuum passage channels than competitors, improving core formation fluid dynamics and ejection with less turbulent motion.

Easy Cleaning
Washable product-contact materials ensure the highest operating standards and fast changeovers.

Total Control
Manual assembly using a PEEK ferrule, manual dose volume adjustment via vernier — or opt for automatic volume adjustment with 100% in-line self-regulation check.
