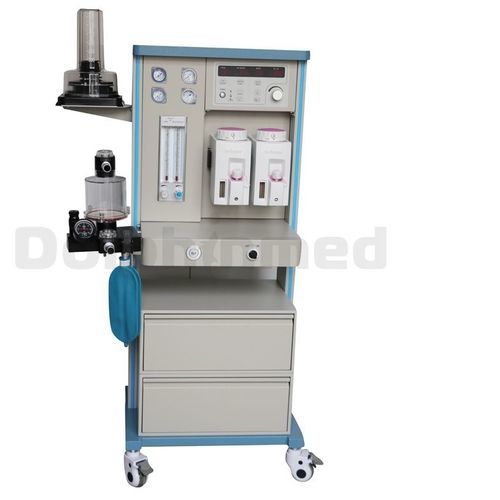

Veterinary anesthesia workstation DA1000vet

trolley-mountedwith ventilatorwith respiratory monitoring

●Space saving compact design ●Build-in battery，can continue working in case of power failure ●Anesthesia Gas source switch design,keep operation at high efficient ●Top-light system ●Alloy frame, humanized handle, easily and conveniently move the machine to any place. ●Equipped with high precise Anesthesia Vaporizer.（Support Single or two vaporizer) ●Adopting stainless pressure gauge, both gas supply and working pressure could be monitored. The pressure range is 0-1MPa, reading scale is 0.05 ●With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents; ●Audible O2.failure warning device ●Four Anti-static castors(2 with brakes) ●2 large drawers with big storage space（support three drawer optional） ●Electronic-pneumatic ventilator ●Common gas outlet（CGO) ●Ergonomics design to meet the animal clinical requirements,suit for lab .animal hospital and scientific institute etc. ●Small animal special bellow design Main Unit： Working Mode：Closed,Semi-closed,，semi-open system，Open Driven mode: Pneumatically driven manual controlled Application:0.5-100kg animal Anesthesia gas source switch:start or stop the gas source control Pressure Gas Gauge:four press gauge;one is oxygen source pressure one is oxygen working Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure High precious anesthesia vaporizer,the agent output is continuous and stable, and precise. the agent type: Isoflurane,halothane,sevoflurane. Oxygen flush：25L/min~75L/min Airway pressure: O2:0.25Mpa~0.65Mpa Power:220V±10%,50HZ±1% or 110V±10%,60HZ±1%
