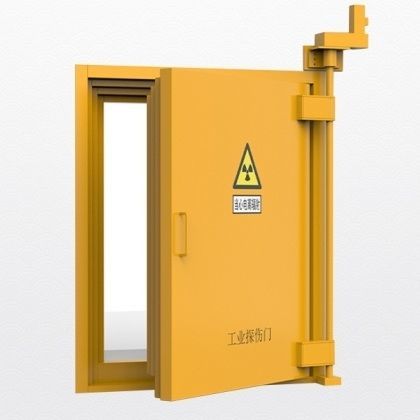

Radiation protection door

shieldedx-ray protectionhermetic

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating, and the motor shall meet the IP54 dustproof and waterproof rating.
• Door Integrity: The shielding materials shall be continuous and intact. The lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: Adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: Equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame Requirement: The frame is supported by No.24 channel steel.

Technical Parameters
Refer to provided product technical graphics for dimensional and installation details.

Application Fields

• Department of Radiology：The Department of Radiology is a comprehensive department integrating imaging diagnosis and interventional therapy. Radiological diagnosis employs X-rays, gamma rays and other radiation to penetrate the human body, rendering images of internal bodily structures and organs on fluorescent screens or radiographic films, enabling evaluation of human anatomical morphology, physiological functions and pathological lesions.
• Department of Radiation Oncology：Radiation oncology is a localized therapeutic modality that uses ionizing radiation for cancer treatment. Radiation sources include alpha, beta and gamma rays emitted from radioactive isotopes, as well as X-rays, electron beams, proton beams and other particle beams generated by various X-ray therapy units and medical accelerators.
• Department of Nuclear Medicine：It adopts nuclear science technologies for disease diagnosis and treatment. As an integrated department combining imaging, therapeutic services, scientific research and teaching, it serves as one of the core modalities in modern medicine.

Caractéristiques / spécifications techniques

• Shielding composition: 30 mm lead (Pb) layer combined with 120 mm boron-containing polyethylene paraffin for neutron attenuation.
• Door panel thickness: 1.0 mm (panel skin); Door body construction: 10 mm Q235 steel plate.
• Surface treatment options: sandblasting + fluorocarbon coating; alternative finish: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spray.
• Motor specification: brand-name motor meeting IP54 rating; includes high-load-bearing rails and cover plates.
• Sealing and integrity: continuous shielding materials; lead sheet tightly fitted to frame to avoid leakage.
• Protection accessories: anti-fingerprint mirror finish belt specialized for radiation protection.
• Frame support: No.24 channel steel structural support.
