Air-tight door

operating roomfor surgery unitsfor clean rooms

Product Overview

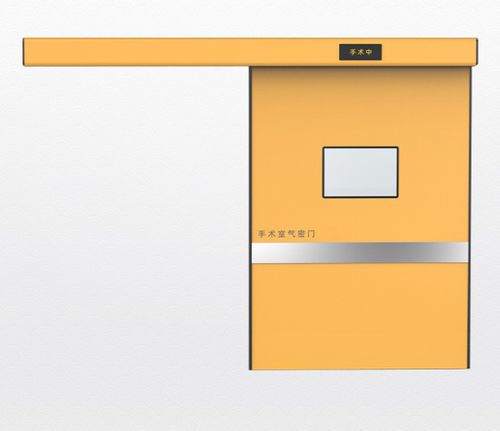

This automatic electric airtight door is designed for cleanrooms and operating rooms. It creates a reliable seal to limit air exchange and helps maintain constant temperature, humidity and positive pressure required for aseptic environments.

Product Performance

• Prevents cold air and dust from entering the cleanroom, maintaining stable indoor temperature and humidity.
• Operates smoothly and quietly, minimizing air exchange and providing sound insulation.
• Specially designed handle reduces opening force during power outages.
• Door structure ensures safe passage for medical personnel, patients and trolleys, improving overall comfort and workflow.

Technical Parameters

• Leaf weight: Max. 150 kg
• Door width: 1080 mm ~ 1580 mm
• Clear structural width: 2360 mm ~ 3360 mm
• Opening speed: 250–500 mm/s (adjustable)
• Closing speed: 250–500 mm/s (adjustable)
• Hold-open duration: 2–20 s (adjustable)
• Tight closing force: >70 N
• Total power consumption: <150 W

Application Fields

• Operating Room Purification Department：The Operating Room Purification Department provides aseptic surgical environments and infection control. The system uses multi-stage air filtration and constant temperature & humidity regulation to remove airborne particles and bacteria, maintain positive pressure and prevent contaminated air from entering the operating area.

Characteristics / Technical Specifications

• Leaf weight: Max. 150 kg
• Door width: 1080 mm – 1580 mm
• Clear structural width: 2360 mm – 3360 mm
• Opening speed: 250–500 mm/s (adjustable)
• Closing speed: 250–500 mm/s (adjustable)
• Hold-open duration: 2–20 s (adjustable)
• Tight closing force: >70 N
• Total power consumption: <150 W
• Features: smooth and quiet operation; minimized air exchange; sound insulation; special handle for reduced opening force during power outages; door structure designed for safe passage of staff, patients and medical trolleys.
