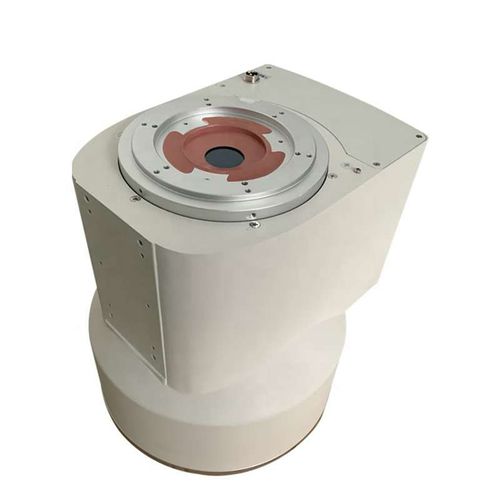

Image intensifier NK-23XZ/P3 9E

Newheek NK-23XZ X-Ray Image Intensifier is the electronic output equipment which converts the x-ray image into the visible light image. It is installed on the x-ray TV system, which is applicable to the x-ray fluoroscopy and radiograph. 1.The main role of image intensifier: watching dynamic images. 2.Applicable equipment for image intensifier includes medical C-arm X-ray machine, lithority machine, digital gastrointestinal machine, industrial non-destructive testing machine, security inspection machine of customs, post and telecommunications department, etc. 3.Image Intensifier 9 inch the output diameters of 25 mm.Surpport 9-inch,6-inch,4.5-inch three vision switch. 4.Image Intensifier 9 inch limiting resolution: 52Lp/cm 5.Besides, the image intensifier has 12-inch. Specification (1) Photoelectric Performance: Input screen size 230mm Effective entrance field of view size 215mm Output image diameter 20mm / 25mm Limiting resolution 48Lp/cm / 52Lp/cm (2) Low Voltage Power Supply Performance Parameters: Input voltage 86V ～ 265V Input power supply frequency 50Hz/60Hz Output voltage 24V±0.5V Output current (effective value) 1.5A Product Purpose The nominal entrance field of view of Newheek NK-23XZ image intensifier is 23cm (9inch), which is mainly application to C-arm, multi-functional stomach and intestine radiograph and fluoroscopy x-ray machine, digital RF x-ray machine, lithotrity and industrial detection X-ray machines etc. Usage Scenario Image intensifier image intensifier tube replace Toshiba Thales OEC x ray image intensifier Medical X-ray image intensifier is an electronic device that converts X-ray image input into visible light image output.
