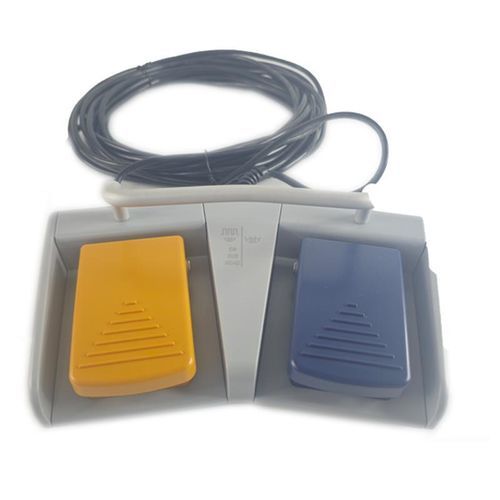

Ophthalmic unit footswitch F02AT

dentalfor medical lasersfor surgery units

This dual-stage foot switch F02AT by Newheek is designed for C-arms and X‑ray systems, as well as a wide range of medical and light-industrial equipment. The unit features a flame-retardant reinforced ABS housing, fully sealed micro switches and an IP68-rated enclosure suitable for harsh, moisture-prone environments.

Features:

• Dual foot switch (two-stage pedal) for momentary/dual-action control
• Standard cable length: 2 m (customizable on request)
• Wire core options: 3-core or 4-core
• IP68 waterproof/dustproof/oil-proof sealed contacts

Applications:

• Medical imaging and devices: C-arm X‑ray systems, X‑ray machines, ultrasound, laser surgical tools, dental and ophthalmic equipment, medical tables and beds
• Light industry and textile machinery: sewing machines, stamping, shoe-making and ironing equipment
• Manufacturing and assembly: dispensers, bonding/welding machines, PCB/electronic assembly lines
• Instrumentation and automation: inspection devices, office equipment, baggage handling, parcel sorting and parking systems

Packaging & Delivery:

• Packing: Waterproof and shockproof carton
• Carton size: 400 mm × 400 mm × 180 mm
• Gross weight: 2 KG; Net weight: 1 KG
• Lead time: Shipped in 3–5 days after payment
• Common ports: Qingdao, Shanghai, Ningbo
• Commercial terms shown: FOB price range US $0.5 - 9,999 / Piece; Minimum order quantity: 100 pieces; Supply ability: 10,000 pieces/month; Place of origin: Shandong, China

Technical specifications:

• Model number: F02AT
• Brand: Newheek
• Material (pedal): Flame-retardant reinforced ABS (grey)
• Material (base): Flame-retardant reinforced ABS (blue)
• Insulation resistance: ≥ 100 MΩ (tested at 500 VDC)
• Contact resistance: ≤ 50 mΩ (initial)
• Dielectric withstand voltage: 2000 VAC, 1 minute
• Operating temperature: -25 °C to +70 °C
• Operating humidity: 45%–85% RH
• Internal switch: KACON/OMRON micro switch with gold-alloy contacts, fully sealed
• Protection rating: IP68 (waterproof, dustproof, oil-proof) per IEC/EN60529
• Durability: ≈30,000,000 mechanical cycles; >200,000 electrical cycles
• Wire length: Standard 2 m (customizable)
• Wire core: 3-core or 4-core options
