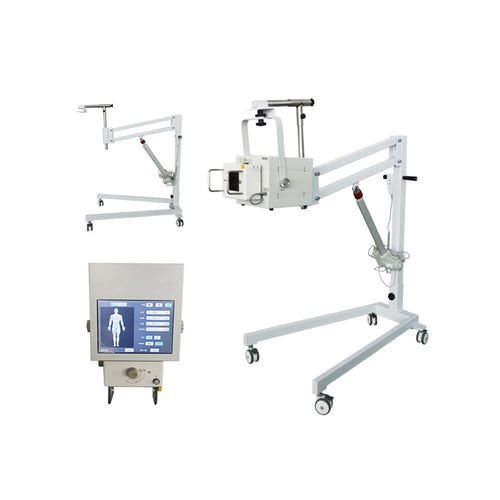

DR mobile radiography unit 100 ma X

Overview
Compact, lightweight portable X-ray machine designed for mobile digital radiography. Built on high-frequency inverter technology, the unit integrates with DR flat panel detectors to produce fast digital images for limb and chest imaging in hospitals, clinics, examination centers and ambulances.

Key features

• Portable design with compact X-ray head (head weight: 15 kg) for easy transport and use in varied clinical environments.
• High-frequency inverter providing stable high-voltage output for consistent image quality.
• Compatible with DR flat panel detectors for immediate digital acquisition without darkroom processing.
• Multiple exposure control methods: remote control, hand brake and interface buttons; includes fault self-diagnosis and self-protection functions.
• Flexible digital interface enabling compatibility with different DR detectors and advanced programming control.

Parameters / Specifications

• Maximum power: 5 kW
• Photographic KV range: 40 kV - 110 kV
• Photographic mA range: 40 mA - 100 mA
• mAs range: 1 mAs - 190 mAs
• Exposure time: 0.04 s - 3.2 s
• Input power: AC 220 V ±22 V, 50 Hz ±1 Hz
• Mainframe dimensions: 40 × 26.5 × 23 cm
• Device size (packed): 61 × 43 × 46 cm
• Net weight (X-ray head): 15 kg
• Gross weight (packed): 32 kg
• Photographic range: Human limbs and chest

Applications and logistics

• Adapted scenes: Hospitals, wards, clinics, physical examination centers and ambulances.
• Lead time estimates: 1–10 pcs → 3 days; 11–50 pcs → 10 days; 51–200 pcs → 20 days; >200 pcs → to be negotiated.
• Packaging: Waterproof and shockproof carton. Typical ports: Qingdao / Ningbo / Shanghai.
• Exposure controls & protections: Remote control, hand brake, interface buttons, fault self-diagnosis and self-protection functions.
