Radiography table-mounted radiography cassette holder NK14SY

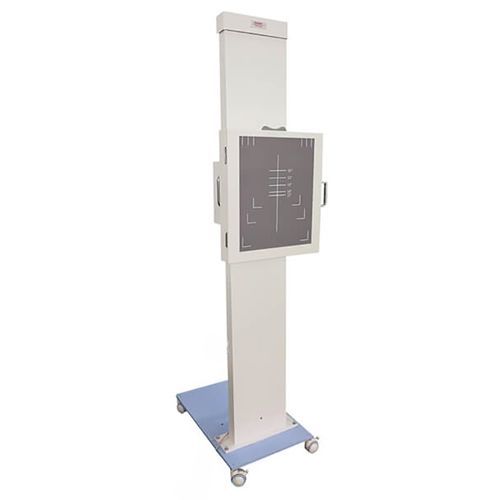

Short description Medical vertical mobile X-ray bucky stand designed for chest and general radiography. Compatible with film cassettes, CR plates and DR flat panels for head, chest, abdomen and pelvic examinations. Composed of a column, film box, travel rack and balance base.

Features

• Film box maximum stroke: 1100 mm
• Card slot width suitable for detector plates 6–18 mm thickness
• Film box vertical range: 700 mm (lowest) to 1800 mm (highest) from floor
• Supports film/cassette/DR/CR up to 14"×17" (minimum 8"×10")
• Optional mobile base to convert into a mobile unit (NK14SY type); mobile base size: 70 × 46 × 11 cm

Product Identity / Key Attributes

• Category: Medical X-ray equipment & accessories
• Brand Name: Newheek
• Model Number: NK14SY
• Product name: Vertical bucky stand
• Film fixing method: Frontal
• Film box travel distance: 1100 mm
• Color: White
• Customization: Available
• Certificates: ISO9001, ISO13485

Standard Configuration
Brand: Newheek
Model: NK14SY
Open Way: Frontal
Film Box Move Distance: 1100 mm
Column Height: 1950 mm
Grids Max Size: 14"×17"
Cassette Max Size: 14"×17"
Cassette Min Size: 8"×10"

Items / Quantity / Configuration

• Column — 1 Set — Standard
• Film Box — 1 Set — Standard
• Grids — 1 Piece — Option

Packaging & Delivery

• Waterproof and shockproof carton
• Carton size: 58.8 cm × 197 cm × 47 cm
• Packaging details: Port options include Qingdao, Ningbo, Shanghai
• Lead time (estimated): 1–10 pieces: 10 days; 11–50 pieces: 30 days; >50 pieces: to be negotiated

Product Show

• Multiple product images available showing different views of the NK14SY mobile-type bucky stand

Technical specifications

• Model: NK14SY
• Brand: Newheek
• Film box maximum stroke: 1100 mm
• Card slot width suitable for plates 6–18 mm thickness
• Film box vertical travel range: 700–1800 mm from floor
• Column height: 1950 mm
• Supported grid / cassette max size: 14"×17"
• Supported cassette min size: 8"×10"
• Film fixing method: Frontal
• Optional mobile base dimensions (NK14SY type): 70 × 46 × 11 cm
• Color: White
• Certificates: ISO9001, ISO13485
