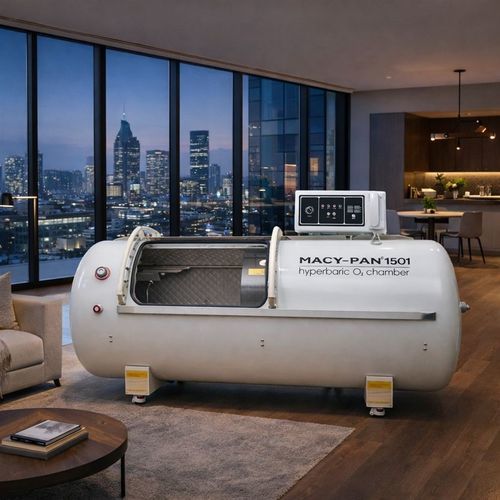

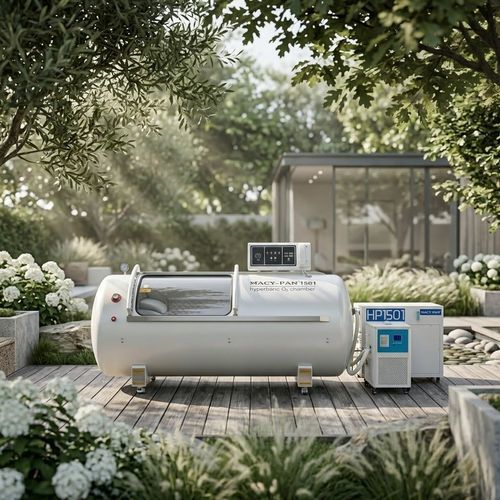

Oxygen therapy hyperbaric cabin HP1501 S

on castersmonoplace

Product Introduction
The HP1501 1.6 ATA Hyperbaric Chamber by Macy-Pan is a compact, single-occupancy medical hyperbaric system designed for clinical and professional wellness environments with limited space. This listing presents the S Size (diameter 750 mm) variant, offering a recumbent layout, dual control panels (internal and external) and an integrated two-way communication system. Suitable for clinics, rehabilitation centers, medical spas and professional home-care settings. Single-operator handling and straightforward operation.

Product Description
304 stainless steel integrated molding with cylindrical structure engineered for pressure integrity and long-term durability. No welding or splicing at the shell, enabling simplified installation and reliable service life.

Key Design & Comfort Features

• Ergonomic dual-side handrails for patient support.
• Panoramic door made of aviation-grade polycarbonate (PC) for clear visibility.
• Internal door closure misfeed prevention system to ensure seal integrity.
• Heavy-duty swivel casters with high-density rubber cores and reinforced metal brackets for mobility and load-bearing.

Control, Monitoring & Communication
Dual intelligent control panels with integrated graphical user interface to visualize pressure, temperature, airflow and oxygen concentration; preset one-touch modes. Internal and external intercom enables immediate assistance calls without leaving the chamber.

Safety Architecture
Eight integrated safety mechanisms:

• Dual pressure relief valves (internal & external) for manual rapid depressurization.
• Automatic pressure maintenance valve to keep preset pressure and prevent anomalies.
• Carbon dioxide removal system to avoid CO2 accumulation.
• Internal humidification device to control humidity and reduce static risk.
• Smart door sensor preventing system start if door is not fully closed.
• Emergency pressure relief valve with manual/automatic activation for over-pressure protection.
• Over-pressure audible alarm inside the chamber.
• Power failure alarm to alert users on unexpected power loss.

Quality Certifications
Certified to multiple international standards ensuring operational safety and quality reliability. Displayed certifications include CE, ISO9001, ISO13485, PED, NFPA, ASME, PICC, ROHS, SGS and UL.

Interior Features & Options

• RoHS-compliant, non-toxic mattress built in.
• Built-in LED ambient lighting for soft, eye-friendly illumination.
• Internal smart control screen plus external control panel.
• Air conditioning unit for intelligent climate control (temperature and airflow).
• Dual internal & external pressure gauges (WIKA) for real-time monitoring.

Optional Configurations

• Starry-sky ceiling lighting.
• BIBS (built-in breathing system) and medical interface options.
• External or built-in TV options.
• Premium painting, OEM and ODM customization services.

Shipping & Payment Notes
Shipping: Global delivery by air (approx. 1 week) or sea (approx. 1 month) depending on destination. Payment: Bank transfer or credit card; full payment required prior to shipment.

Product Specifications (table representation)
Accessory Machine Parameters - HP1501-75 1.6 ATA Hyperbaric Chamber
Chamber Cabin | Dimensions (L*W*H) | S SIZE: HP1501-75: 220cm * 75cm * 75cm (87in x 30in x 30in)
Chamber Cabin | Net Weight | 140 kg
Chamber Cabin | Pressure | 1.5–1.6 ATA
Chamber Cabin | Capacity | 1 person
Chamber Cabin | Material | 304 Stainless Steel + Polycarbonate
Chamber Cabin | Movable Wheels | Yes
All-in-one machine | Dimension (L*W*H) | 76 * 45 * 65 cm (30in x 18in x 26in)
All-in-one machine | Net Weight | 80 kg
All-in-one machine | Air Filter | Dual
All-in-one machine | Voltage | 110/220 VAC ±10%
All-in-one machine | Flow of Air | 72 L/min
Air Conditioner | Dimension | 47 * 46 * 69 cm (18in x 18in x 27in)
Air Conditioner | Net Weight | 35 kg
Air Conditioner | Power Consumption | 300 W
Air Conditioner | Temperature Range | 2°C–10°C

Characteristics / Technical Specifications

• Model: HP1501 (S Size featured on this page).
• Brand: Macy-Pan.
• Capacity: 1 person (single occupancy; can be adapted for larger diameters).
• Working Pressure: 1.5–1.6 ATA (marketed as 1.6 ATA).
• Chamber Dimensions (S Size): 2200 mm (L) x 750 mm (W) x 750 mm (H).
• Diameter Options: 750 mm, 850 mm, 900 mm, 1000 mm.
• Net Weight (chamber S Size): approx. 140 kg.
• Materials: 304 stainless steel integrated molding; aviation-grade polycarbonate door.
• Mobility: Heavy-duty swivel casters (movable wheels).
• Control: Dual internal & external intelligent control panels; integrated GUI; internal/external intercom.
• Oxygen/Air Handling: Dual air filter; CO2 removal system; internal humidification; airflow 72 L/min.
• Power: Voltage 110/220 VAC ±10%.
• Air Conditioning: AC unit (47 x 46 x 69 cm), 300 W, temperature range 2°C–10°C.
• Safety: Dual pressure relief valves; automatic pressure maintenance valve; emergency pressure relief valve; smart door sensor; over-pressure alarm; power failure alarm.
• Certifications: CE, ISO9001, ISO13485, PED, NFPA, ASME, PICC, ROHS, SGS, UL.
• Customization: OEM & ODM services; optional interior customizations (TV, premium painting, starry ceiling, BIBS).
• Warranty: One-year warranty for all parts; extended warranty available.
