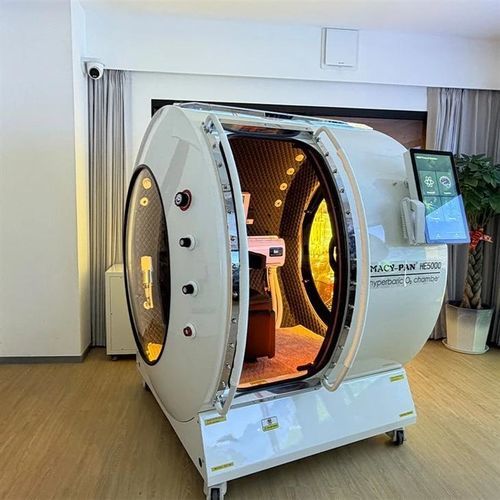

Oxygen therapy hyperbaric cabin HE5000

portableon casters2 places

Product Introduction:
The Macy-Pan HE5000 Diamond is a 2.0 ATA hyperbaric oxygen chamber designed for single- or dual-occupant therapeutic use. The panoramic transparent cabin reduces the feeling of confinement and supports a calm treatment environment. Available in Monocoque (one-piece) or Modular sectional configurations for permanent or flexible installations.

Key product data:

• Model: Macy-Pan HE5000 Diamond
• Capacity: 1–2 people
• Working Pressure: 2.0 ATA
• Size: L1600 × W1450 × H1750 mm (63" × 57" × 69")
• OEM & ODM services available
• Shipping: Air (approx. one week) or sea (approx. one month)
• Payment: Bank transfer or credit card; full payment required before shipment
• Warranty: One year on all parts; extended warranty available

Key Features & Design Highlights
A. The Crystal Vista Design

• Large transparent side viewing windows to maximize natural light and exterior visibility for user comfort.
• Full-view transparent door for easy external observation during therapy.

B. Advanced Therapeutic Environment

• Integrated far-infrared lighting calibrated within the cabin to complement hyperbaric oxygen therapy for enhanced circulation and cellular effects.
• Operates at a stable 2.0 ATA working pressure suitable for a variety of therapeutic protocols.

C. Configurable & Ergonomic Interior

• Seating options: single 360° rotating reclining chair (adjustable backrest and foot support) or dual side-by-side bench seating.
• Interior finishes in medical-grade upholstery with multiple color options.

D. Innovative Structural Flexibility

• Monocoque design for one-piece installations where structural integrity and appearance are prioritized.
• Modular sectional design for transport through standard doorways, staircases and elevators and on-site assembly.

Comprehensive Safety Architecture

• Dual pressure relief valves (inside & outside) — manual operation for rapid depressurization and exit.
• Automatic pressure maintenance valve — preserves preset pressure and prevents anomalies.
• Carbon dioxide removal system — prevents CO2 buildup and ensures safe exhaust levels.
• Internal humidification device — addresses cabin humidity without static risk.
• Smart door sensor — system cannot start unless the door is fully closed.
• Emergency pressure relief valve — manual or automatic activation for over-pressure protection.
• Over-pressure alarm — audible alarm inside the chamber on abnormal pressure rise.
• Power failure alarm — automatic alert on unexpected power loss.

Comprehensive Quality Certifications

• CE
• ISO9001
• ISO13485
• PED
• NFPA
• ASME
• PICC
• ROHS
• SGS
• UL

Interior Options & Customization

• Seat upholstery: vegan leather or medical-grade fabric (color options: Ocean Blue, Serene Grey, Pure White).
• Ambient lighting: optional chromotherapy (color therapy) LED system.
• Audio-visual package: integrated media screen and noise-canceling headphones.
• Hyperbaric office configuration: additional desk and rotating chair options.

Optional Configurations

• Starry sky ceiling
• BIBS (built-in breathing system)
• Premium painting and surface finishes
• OEM & ODM customizations

Product Dimensions (summary):
Chamber cabin dimensions: L1600 × W1450 × H1750 mm (63" × 57" × 69")

Product Packaging:
Packaged for global shipment with protective packing suitable for air or sea transport.

Technical specifications:

• Chamber cabin dimensions: L1600 × W1450 × H1750 mm (63" × 57" × 69")
• Chamber material: SUS304 stainless steel
• Door & viewport material: high-strength polycarbonate (PC), high transparency, impact resistant
• Working pressure: 2.0 ATA
• Capacity: 1–2 people
• Movable wheels: yes
• Air cooler — dimension: 589 × 387 × 604 mm; power: 900 W
• Air compressor — dimension: 1264 × 320 × 631 mm; power: 520 W
• Oxygen generator — dimension: 715 × 471 × 757 mm; power: 1600 W
