ECG patient monitor / RESP / TEMP / NIBP
PM6750

{{requestButtons}}

Characteristics

  • Measured parameter:

    ECG, RESP, TEMP, NIBP, SpO2

  • Applications:

    intensive care

  • Configuration:

    handheld

  • Other characteristics:

    continuous, USB

Description

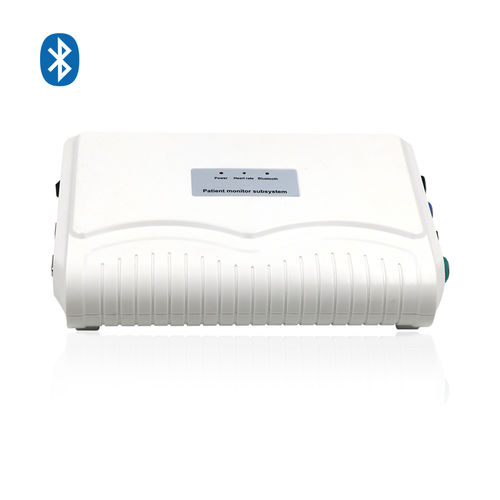

Handheld PM6750
Item No.: PM6750
Make full use of modern mobile communication (GPRS) and the Internet (Ineternet) transmission technology on the basis of the traditional custodians of the wireless transmission of real-time data.
Feature

l Six parameter Bluetoothmodule is including Spo2,Pulse Rate, ECG, NIBP and Resp functions. It can beconnected by serial RS232,Bluetooth and usb.

l Real-time patient data upload stable, good mobility , convenient and reliable. Continuous monitoring facilitate customer secondary development according to specific needs ,the traditional guardianship upgraded to modern mobile monitoring products.

Specification

Operation system

Android

ECG

Full lead:5-leads ECG, output 7 channels (I II III aVL aVR aVF V)

Gain: 2.5mm/mV,5mm/mV,10mm/mV,20mm/mV

Scanning speed:12.5mm/s,25mm/s and 50mm/s

Band width:0.05Hz-100Hz(3dB) Diagnostic mode

1-40Hz Monitor mode

0.1-25Hz Operation mode

Resp

Chest impedance method or concentration of carbon dioxide at end of respriation

Range:0 time/minute -100 times/minute

Accuracy: ±2 time/minute

Temp

Type: Vascular/surface temperature

Scope: 20℃-50℃

Accuracy: ±0.2℃

NIBP

Detection scope:

Systolic blood pressure: 4kPa-34kPa(30-255mmHg)

Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)

Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)

Detection accuracy: Static pressure:±4mmHg

SpO2

Detection scope: 35%-100%

Accuracy: ±2% 80%-100%

±3% 70%-79%

Heart rate

Scope: 15bpm to 300bpm

Accuracy: ±1bpm

AC adapter

Input:AC100-240v-200mA

Output:DC 12V2A

Bluetooth

Support both Bluetooth 3.0 and BLE 4.0

Service life

Over 10000 times

Size

240mm*165mm*50mm
