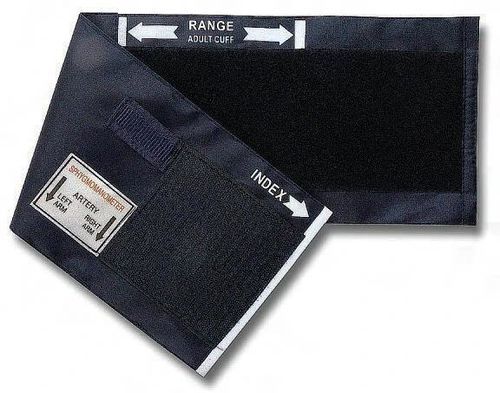

Blood pressure cuff 621 series

nylon

Category
Blood Pressure Accessories · Blood Pressure Cuffs

Product
The Nylon Calibrated Cuff series comprises seven models (6211–6217) designed for non-invasive blood pressure measurement across patient size ranges. Each cuff is identified by a model code and specified dimensions to match limb circumference and intended patient group.

Models overview

• 6211: 250 x 45mm; newborn; below 1 year old
• 6212: 330 x 50mm; infant; 1-4 years old
• 6213: 380 x 70mm; small adult; 5-9 years old
• 6214: 450 x 105mm; child; 10-16 years old
• 6215: 500 x 140mm; adult
• 6216: 620 x 170mm; large adult
• 6217: 770 x 185mm; thigh

Gallery
Catalogue family view and additional gallery images are available to show cuff construction, markings and size layout for selection and verification.

Ordering information
Select the model code (6211–6217) corresponding to the patient group and limb dimension. Refer to the models & specifications section for exact dimensions and intended use when placing orders.

Specifications / technical data

• Series name: Nylon Calibrated Cuff
• Available models: 6211, 6212, 6213, 6214, 6215, 6216, 6217
• 6211 — Dimension: 250 x 45mm — Intended for: newborn (below 1 year old)
• 6212 — Dimension: 330 x 50mm — Intended for: infant (1-4 years old)
• 6213 — Dimension: 380 x 70mm — Intended for: small adult (5-9 years old)
• 6214 — Dimension: 450 x 105mm — Intended for: child (10-16 years old)
• 6215 — Dimension: 500 x 140mm — Intended for: adult
• 6216 — Dimension: 620 x 170mm — Intended for: large adult
• 6217 — Dimension: 770 x 185mm — Intended for: thigh
