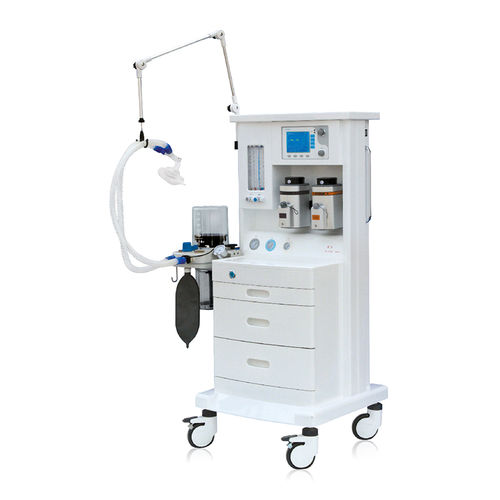

Trolley-mounted anesthesia workstation HF-560B4

with ventilatorwith respiratory monitoring

1.Real-time recording of flow-time waveform,pressure-volume loop and other waveforms allows users to grasp the patient’s condition at any time,and everything is in hand. 2.The abundant display interface of patient monitoring parameters makes each parameter clear at a glance,and enables medical workers to understand the patient’s condition more comprehensively.It provides a perfect basis for the formulation of treatment plan and evaluation of treatment effect. 3.More scientific and convenient operation. 4.The respirator is a high definition liquid crystal display(LCD liquid crystal)with clear parameters setting and monitoring. 5.Monitoring parameters and safety parameters are set with the design of “humanization,quick response and touch switching”,which makes the operation more scientific and convenient. 6.Mechanical ventilation is made secure and visible by the folded respiratory bellows,and the security of air supply is guaranteed by peneumatic transmission and measurement system.With multiple modern technologies applied,the Anesthesia Machine is both outstanding in performance and versatile in functions. Main Parameters Tidal volume - 50~1500ml Rate - 2~99bpm SIMV rate - 2~20bpm I:E - 2:1~1:8 Inspiratory trigger pressure - -10~20 cmH2O PEEP - 2~20cmH2O Pressure Range - 10~60cmH2O SIGH - 1.5 times the inspiratory time(60~120 adjustable)
