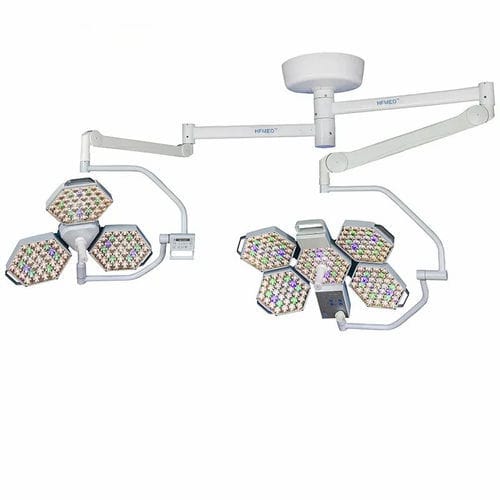

Ceiling-mounted surgical light SY02-LED3+5
LED2-arm96

ceiling-mounted surgical light
ceiling-mounted surgical light
ceiling-mounted surgical light
ceiling-mounted surgical light
ceiling-mounted surgical light
ceiling-mounted surgical light
ceiling-mounted surgical light
Add to favorites
Compare this product


Characteristics

Configuration
ceiling-mounted
Light source
LED
Number of arms
2-arm
Color rendering index
96
Options
with control panel, with video camera
Intensity at 1 m

120,000 lx, 140,000 lx

Color temperature

Min.: 3,600 K

Max.: 5,200 K

Lifetime of bulbs

50,000 h

Power

140 W

Description

Adjustable lighting depth: During deep surgery, superficial tissues may block part of the illumination light, there by forming partial shadows in the surgical area. When the SY02-LED5 shadowless lamp is set to the deep illumination mode, the system will automatically extinguish the invalid LED light source and selectively automatically increase the brightness of the effective LED light source to repair the shadows, thereby providing deep shadowless lighting that is 20% brighter than the traditional shadowless lamp. Adjustable illumination height: multi-lens light source matrix design to achieve surface and deep illumination effects Illuminated surface temperature rise: The LED light source does not produce infrared rays, and the ratio of Ee to Ec is 2≤mW/(m2.lx)≤4. At the same time, the extremely low temperature rise of the operation area also avoids the loss of body fluid caused by the temperature rise of the patient's surgical site during the operation. It solves the problem of incision healing caused by the higher temperature rise of ordinary shadowless lamps. Long life lighting: LED light source life of up 50,000 hours pr more, with an average life of an ordinary light shadowless lamp halogen 50 times, and each LED can be individually replaced, to ensure maximum ues of economy. Optimized air flow design for better hygiene: with its open design and superior ventilated ceiling tolerance, SY02-LED ensures that perfect operating conditions are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and the reduced heat generation ensures a low turbulence displacement stream under the light head.
