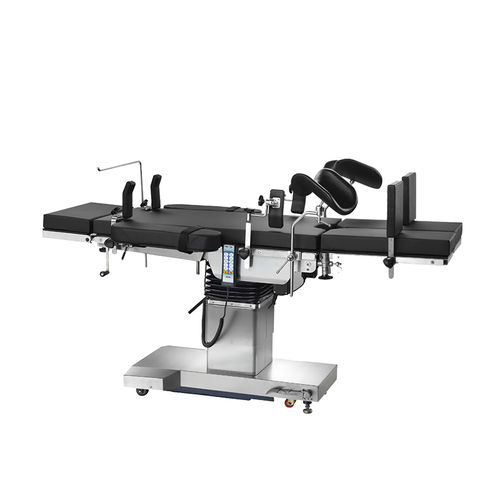

Universal operating table HFEOT99
electricTrendelenburgreverse Trendelenburg

universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
Add to favorites
Compare this product


Characteristics

Applications
universal
Operation
electric
Features
Trendelenburg, reverse Trendelenburg, adjustable height
Number of sections
4-section
Length

2,000 mm
(78.7 in)

Width

550 mm
(21.7 in)

Mattress thickness

8 cm
(3.1 in)

Description

Plus 120mm for the kidney bridge up: The main body position adjustment of the table lifting, front and rear, and right deviation is realized by imported electric push rod transmission. 8cm thickness high elastic sponge: High density and high elasticity sponge is soft and comfortable, supporting force springback is fast, and long-team use is not easy to deform. Altitude angle can be adjusted at will: The height and angle of the operating bed can be adjusted at will, form left to right, form top to bottom. Free dismantling of the foot: For the convenience of operation, the foot plate can be disassembled at will, making the operation more convenient and safer. Thickening industrial steel underframe:The use of thickened stainless steel, bed load-bearing capacity to enhance safety and ease of use. Main Parameters Elevation(up/down) - 680mm/930mm Trendelenburg - 25° Reverse Trendelenburg 25° Lateral Tilt(left/right) - 15°/15° Heat Rest(up/down) - 45°/90° Foot Plate(up/down/&horizontal positioning) - 90°/90°/15° Back Plate(up/down) - 75°/20° Longitudinal Sliding - 300mm Kidney bridge elevation - 120mm Power - 220v,50Hz,1.0kw
