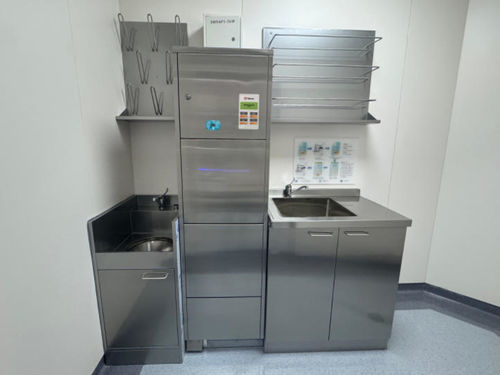

Automatic bedpan washer 1050

Product overview
Meddo Bedpan Washer-1050 is an automated washer-disinfector engineered for cleaning and disinfecting bedpans and related receptacles in medical and care environments. The unit integrates programmable wash cycles, temperature control and an enclosed self-cooling system to reduce aerosol release during operation and door opening.

Key features

• A0 value compliant with ISO 15883 to ensure effective surface bacterial reduction.
• Fully automatic dumping, washing, disinfection and cooling sequences to streamline handling and reduce staff exposure.
• Patented fully enclosed, self-cooling chamber to limit aerosol dispersion and scald risk when opening the door.
• Enclosed automatic dumping and cleaning to minimize odors and contamination risk.
• Non-contact sensors to avoid caregiver contact with contaminated surfaces and reduce cross-infection.
• 24-hour automatic disinfection option to prevent bacterial growth during idle periods.
• Microprocessor control with optimized water and energy consumption; thermal and acoustic insulation for lower noise and energy efficiency.
• Configurable brackets and model variants to suit different facility needs.

Suitable settings

• Hospitals
• Nursing homes
• Long-term care facilities
• Geriatric and rehabilitation centers

Technical specifications

• Model: Meddo Bedpan Washer-1050
• Dimensions (W×D×H): 500×450×1775 mm
• Steam generator power: 4.3 kW / 4.5 kW
• Primary pump power: 0.75 kW
• Primary pump discharge: 270 L/min
• Water tank capacity: max 14 L, min 4 L
• Maximum allowable hot water temperature: 60 °C
• Maximum disinfection temperature: 93 °C
• Maximum allowable external steam pressure: 10 kPa (0.1 bar)
• Ambient operating temperature: -20 °C to 40 °C
• Ambient humidity: 30%–60%
• Noise level: 50 dB

Compliance and customization
Complies with ISO 15883 parameters for washer-disinfectors. Options for customized brackets and external interfaces are available to adapt the unit to specific workflow and installation constraints. Contact the supplier for configuration, installation and service options.
