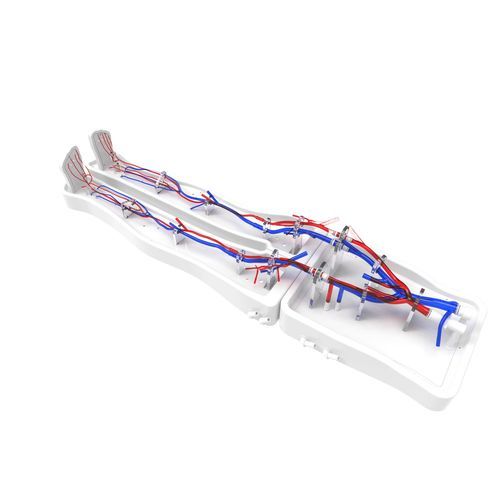

Lower limb vascular model PLWZXG005

veinvena cavafemoral artery

Overview
The model is developed from 1:1 clinical CT/MRI imaging data of Chinese subjects and reproduces lower extremity venous anatomy and the superior and inferior vena cava. The main assembly comprises a high-transparency soft silicone vascular module representing peripheral veins mounted on a humanoid plastic base. Optional accessories (pulse pump, temperature‑controlled reservoir) enable accurate simulation of blood temperature, pressure, flow and pulse, restoring procedural tactile feedback and supporting instrument evaluation, surgical training and product demonstrations.

Features

• 1:1 anatomical replication based on clinical imaging — internal diameters and vascular anatomy (iliac, femoral, popliteal, venae cavae) conform to clinical dimensions for realistic device handling.
• Modular core vascular segments (iliac, femoral, popliteal arteries/veins) are detachable and replaceable to accept customized lesion modules (aneurysm, stenosis), reducing operating costs and adapting to varied training and testing scenarios.
• Compatible with interventional devices (guidewires, catheters, vascular stents) and supports multi-site imaging, endovascular procedures and stent placement for training, device performance testing and product display.

Optional equipment / support
Optional devices such as pulse pumps and temperature‑controlled reservoirs can be selected to simulate blood flow properties (temperature, pressure, flow, pulse) more precisely. Standard configuration includes silicone tubing, adapters and hemostatic valves.

FAQ

• What scenarios is this model designed for? Mainly for (1) performance testing and evaluation of interventional devices (guidewires, catheters, stents); (2) hands‑on training for imaging, endovascular procedures and stent placement across multiple peripheral sites (iliac, femoral, popliteal); (3) functional demonstration and promotion of interventional products.
• Can lesions be customized and are additional devices required? The model supports customization of lesion types and sizes (aneurysms, stenoses). Standard accessories include silicone tubing, adapters and hemostatic valves. To simulate blood flow characteristics precisely, optional devices such as pulse pumps and temperature‑controlled reservoirs can be added.

Technical specifications

• PN: PLWZXG005
• Main material: High-transparency soft silicone, hardness 30A
• Model size: length 125 cm; width 53 cm; height 24 cm
• Lead time: 15 days
• Origin: Shanghai, China
