Anatomy training manikin PLZHXG001

vascular surgerysurgicalsurgery

Product overview

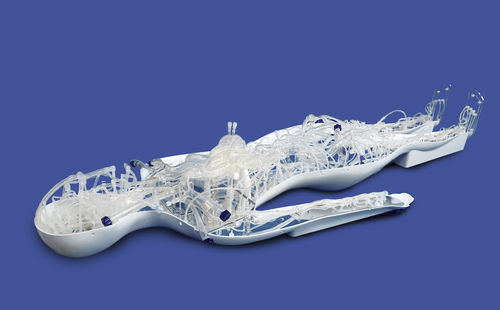

The full-shell humanoid model PLZHXG001 features a fully transparent outer shell and anatomically reconstructed blood vessels based on real CT/MRI data, integrating the major human arteries. The vascular anatomy is cast in soft, transparent silica gel (hardness 30A) to preserve fine anatomical detail. An integrated circulation loop and a bionic pulsatile pump simulate temperature, pressure, flow and pulse to reproduce realistic arterial flow. The model is designed for medical education, surgical training and medical device evaluation, suitable for teaching, hands-on training and R&D.

Main functions

• Surgical simulation and instrument testing with multiple vascular access options (femoral, radial, subclavian and carotid access points).
• Modular lesion areas for high‑risk vascular regions enabling rapid replacement of modules with different anatomies and pathologies.
• Multi‑state blood flow simulation via a programmable pump system to vary heart rate, blood pressure and cardiac output for diverse clinical scenarios.
• Procedure recording: compatible with simulated DSA capture or HD camera recording for review, export and local storage.
• Supports review and iterative improvement of simulated procedures.
• Radiation‑free training enabled by high‑transparency vessels paired with simulated DSA equipment that does not require X‑ray exposure.
• Humanoid appearance improves realism for patient positioning, device placement and team coordination in procedural simulations.

Customization and compatibility

• Supports 1:1 customization from CTA data and includes various interchangeable vascular modules (examples: middle cerebral artery, coronary arteries, abdominal aorta) to simulate aneurysms, stenoses and other disease states.
• Applicable to neurointervention, coronary intervention and peripheral intervention training and device evaluation.
• Fully compatible with common interventional devices (guidewires, catheters, stents) from major manufacturers and with imaging workflows such as contrast angiography and CT.
• Optional simulated DSA system with HD camera for real‑time image display, electronic flip, color enhancement and a full simulated surgical imaging environment.

Technical specifications

• PN: PLZHXG001
• Main material: highly transparent soft silica gel; hardness: 30A
• Vascular model size (L × W × H): 168.5 cm × 58.5 cm × 26.4 cm
• Main uses: surgical simulation, instrument testing, multi‑access training, modular lesion replacement, multi‑state flow simulation, procedure recording, radiation‑free training
• Lead time: 25 days
• Origin: Shanghai, China
