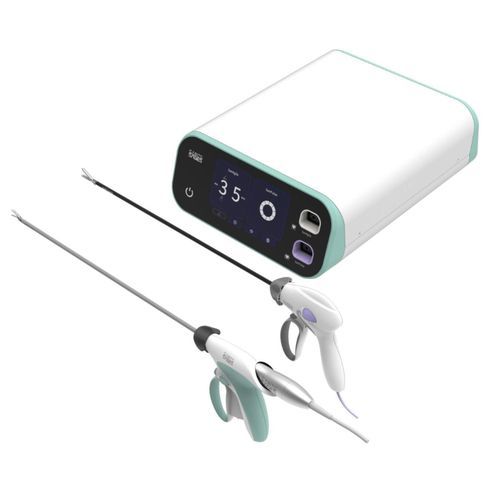

Coagulation electrosurgical unit SA100

bipolar coagulationvessel-sealingcutting

Overview
SA100 Ultrasonic and Radiofrequency Surgical System is the world's first dual-channel advanced energy platform, combining an ultrasonic scalpel and an advanced bipolar RF module. The dual channels provide multiple energy outputs without exchanging instruments during procedures, supporting diverse surgical techniques and improving workflow. The system seals vessels up to 7 mm in diameter and is suitable for a wide range of surgical applications.

Key technologies and features

• Dual-channel advanced energy platform: integrated ultrasonic scalpel and advanced bipolar RF modules enabling multiple energy outputs without instrument exchange.
• MPTS (Multi Pulses Tissue Sensing Technology) with Large Vessel Closure Impedance Feedback Algorithm; feedback frequency 475,000 times/second.
• RTTE II (Real-Time Tissue Effect II) Technology: continuous tissue feedback that dynamically adjusts ultrasonic energy for consistent cutting and effective coagulation while minimizing collateral thermal damage.
• Advanced Hemostasis (Adv) Mode: optimized energy parameters for reliable sealing of vessels up to 7 mm diameter.

User interface and ports

• Touch panel for system control and parameter adjustment.
• Advanced bipolar energy port.
• Ultrasonic energy port.
• Volume adjustment and mode selection, including Advanced Hemostasis Mode.

Clinical suitability
Indicated for a broad range of surgical specialties, including gastrointestinal, thoracic, urology, hepatopancreatobiliary (HPB), thyroid and breast surgery; supports procedures requiring vessel sealing, dissection and coagulation.

Technical specifications

• Model: SA100
• Platform type: Dual-channel (Ultrasonic + Advanced Bipolar RF)
• Maximum vessel sealing diameter: up to 7 mm
• MPTS: Multi Pulses Tissue Sensing Technology with Large Vessel Closure Impedance Feedback Algorithm
• Feedback frequency: 475,000 times/second
• RTTE II: Real-Time Tissue Effect II continuous tissue feedback and dynamic ultrasonic energy adjustment
• Advanced Hemostasis (Adv) Mode for optimized vessel sealing
• User interface: Touch panel
• Energy ports: Advanced Bipolar Energy Port and Ultrasonic Energy Port
