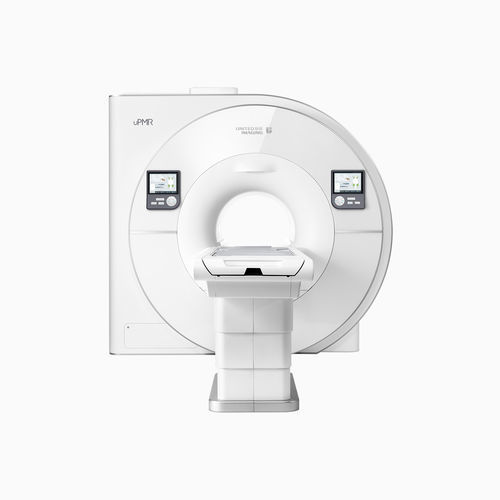

Whole-body tomography PET scanner uPMR 790

for brain tomographyfor cardiovascular tomographyAI-assisted

Overview
The uPMR 790 enables simultaneous PET/MR imaging with high temporal and spatial resolution. Next‑generation PET and MR technologies deliver synchronized anatomical and functional data for both advanced clinical workflows and translational research.

Features & Benefits

• Time‑Space Synergy: integrated simultaneous PET/MR acquisition improves temporal and spatial correlation between modalities.
• uCS 2.0 Platform: high‑speed, high‑resolution reconstruction and workflow support for advanced imaging protocols.
• 32 cm PET FOV: supports whole‑organ coverage and whole‑body scanning in three bed positions; single‑bed full‑organ imaging capability.
• 2.8 mm NEMA PET Spatial Resolution: improves quantitative accuracy and detection of small lesions.
• TOF with dual detectors: enhances localization accuracy and improves lesion contrast.
• Intelligent platform: automated positioning, planning, attenuation correction and quality control to streamline clinical workflow.

uSync Research
The uSync research platform encodes MR sequences, list‑mode PET data and physiological signals into a unified raw data stream to achieve space‑time synchronization. Enables studies such as simultaneous PET/MR tracer tracking, cardiac PET/MR, functional neurological PET/MR and multi‑parametric radiomics.

Intelligent Workflow
Intelligent algorithms provide automated positioning, bed planning, attenuation correction and quality control to simplify PET/MR procedures and reduce operator burden.

Clinical Applications

• Neuro imaging
• Whole‑body imaging
• Oncology imaging
• Cardiac imaging

Notes
United Imaging Healthcare makes no claims about the use of the referenced radiopharmaceuticals. For research use only; not for clinical use.

Technical specifications

• Model: uPMR 790
• System type: Simultaneous PET/MR (HD TOF PET/MR)
• PET Field of View (FOV): 32 cm (supports whole‑organ and 3‑bed whole‑body scanning)
• NEMA PET spatial resolution: 2.8 mm
• TOF: Time‑of‑Flight PET with dual detectors
• Reconstruction / platform: uCS 2.0 (high‑speed, high‑resolution reconstruction)
• Research platform: uSync (simultaneous MR sequences, list‑mode PET and physiological data encoding)
• Intelligent workflow features: automated positioning, bed planning, attenuation correction, automated quality control
• Intended applications: neuro, whole‑body, oncology, cardiac
• Certification number: 304AABZI00045000
