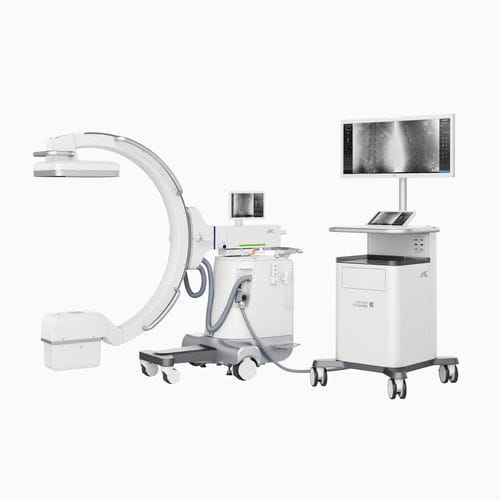

Mobile C-arm uMC Reveal™

with flat panel detectorwith video column

Product Overview
uMC Reveal™ — mobile C-arm incorporating a Tissue of Interest (TOI) imaging algorithm to enhance the performance of a large-format flat-panel detector for clinical imaging. Compact design and ergonomic controls enable automated positioning and streamline interventional workflows.

Features & Benefits

• Less Dose, More Visibility — ABS technology based on TOI with up to 58% dose reduction*.
• Smart Metal Correction — ~20% average CNR improvement*.
• 30 cm x 30 cm large flat-panel detector — 125% field of view increase*.
• Compact, ergonomic design supporting automated positioning and efficient workflows.
• 260 kg ultra-lightweight system — 20% weight reduction* compared with the uMC 560i.

Clinical Application

• Fibular surgery
• Clavicular surgery
• Trigeminal nerve PBC surgery
• Lumbar spine surgery

Technology Highlights
Detector options: CMOS or IGZO (Indium gallium zinc oxide). Power and exposure control optimized for interventional imaging and fluoroscopy. Combination of large flat-panel detector and TOI algorithm improves visibility while reducing dose.

Technical specifications

• Gantry — C-Arm Horizontal Movement: 200 mm.
• Gantry — C-Arm Vertical Movement: 420 mm.
• Gantry — Orbital Rotation: -50° to 90°.
• Gantry — Angulation: ±225°.
• Gantry — Swiveling: ±10°.
• Gantry — C-Arm Depth: 690 mm.
• Gantry — Free Space: 850 mm.
• Image chain — Power output: 3.5 kW.
• Image chain — Range of kV: 40–110 kV.
• Image chain — Range of mAs: 0.01–30 mAs.
• Image chain — Detector technology: CMOS or IGZO (optional).
• Image chain — Field of View: 30 x 30 cm.
• System weight: 260 kg (Ultra-Lightweight System).
• Notes: Optional features indicated with an asterisk where applicable. Data on file for performance claims.
