★Description

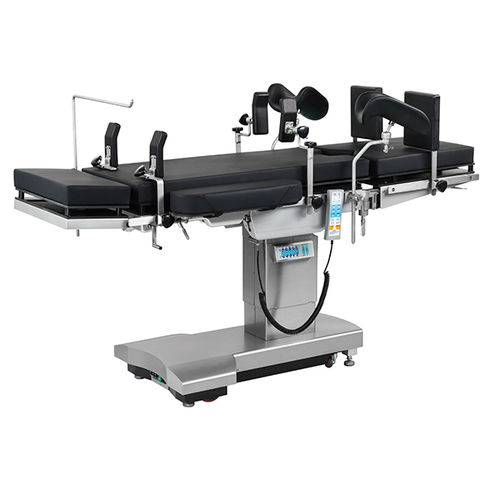

TDY-Y-1 adopts electric imported hydraulic transmission structure, which replaces the traditional electric push rod transmission technology.
★Features
1.Double Control System
2.Available for X-ray Scan
3.Compatible with C-arm
4.Rechargeable Batteries
5.One-button Reset Function
★Parameters
Length and Width - 1960mm * 500mm
Elevation( Up and Down) - 1090mm / 690mm
Head Plate (Up and Down) - 60°/ 85°/0°
Back Plate (Up and Down) - 85°/ 40°
Leg Plate (Up /Down/ Outward) - 15°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg - 28°/ 28°
Lateral Tilt (Left and Right) - 18°/ 18°
Kidney Bridge Elevation - 100mm
Horizontal Sliding - 340mm
Zero position - One button, standard
Flex/ Reflex - Combination Operation
Electro-motor system - Chaoger from Taiwan
Voltage - 220V/110V
Frequency - 50Hz / 60Hz
Power Compacity - 1.0 KW
Battery - Yes
Mattress - Memory Mattress
Main Material - 304 Stainless Steel
Maximum Load Capacity - 200 KG
Warranty - 1 Year
★Standard Accessories
Anesthesia Screen - 1 piece
Body Support - 1 pair
Arm Support - - 1 pair
Shoulder Support - 1 pair
Leg Support - 1 pair
Foot Plate - 1 pair
Kidney Bridge Handle - 1 piece
Mattress - 1 Set
Fixing Clamp - 8 pieces
Remote Control - 1 piece
Power Line - 1 piece
Hydraulic Oil - 1 oil can
