★Description

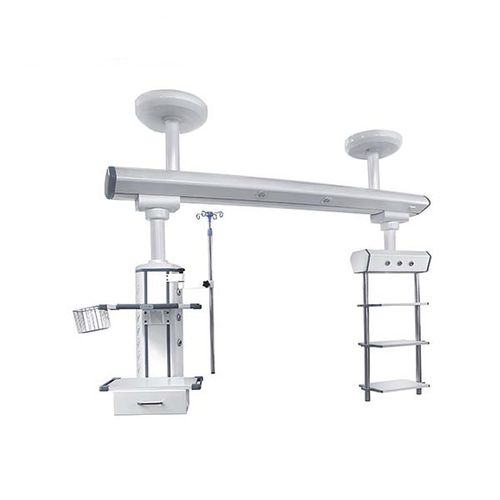

QF-JX-300 refers to ICU medical bridge pendant, which is a necessary medical rescue auxiliary equipment in modern ICU wards, mainly composed of bridge frame, dry section, and wet section.
★Applications:
1.Intensive Care Room
2.Entire Wards
3.Recovery Room
★Features:
1.High-strength Material
The bridge is made of high-strength aluminum alloy material. It has a strong bearing capacity.
★2.Sliding Rail Design
The sliding rail design makes the tower movement more smoothly, and also makes the medical staff more labor-saving.
★3.Soft LED Lightning
LED lighting sources are arranged on the beams of medical bridge pendant to provide a good working environment for medical staff.
★4.Modular structure
Modular structure design can meet future upgrade needs and easy for maintenance.
★5.Gas-electricity Separation Design
The gas-electricity separation design ensures safe use.
★6.Durable Gas Outlets
Different color and shape of the gas interface to prevent wrong connection. Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use. It can be maintained without air off.
Parameters:
Length of the bridge: 2200-3200mm
Movable length of the dry area: 550mm
Movable length of the wet area: 550mm
Rotation angle of the dry area: 350°
Rotation angle of the wet area: 350°
Bearing Capacity of the bridge: 600kgs
Bearing Capacity of the dry area: 280kgs
Bearing Capacity of the wet area: 280kgs
Accessories
Instrument Tray - 5 -
Drawer - 2 -
Oxygen Gas Outlet - 4 -
Vacuum Gas Outlet - 4 -
Air Gas Outlet - 2 -
Electrical sockets - 12 -
RJ45 Socket - 2 -
Equipotential Sockets - 4 -
Syringe Pump Combinat rack - 1 -
Stainless Steel basket - 2 -
IV Poles - 1
