Leading technology,choosing monochrome and phosphor coated OSRAM LED bulb,most in line with the harsh requirements of surgical lighting and able to produce pure and natural white light,provide a sharp and constant spot,also never produce color bulbs caused by color trim and rainbow effect.
Detailed Technical Parameter:

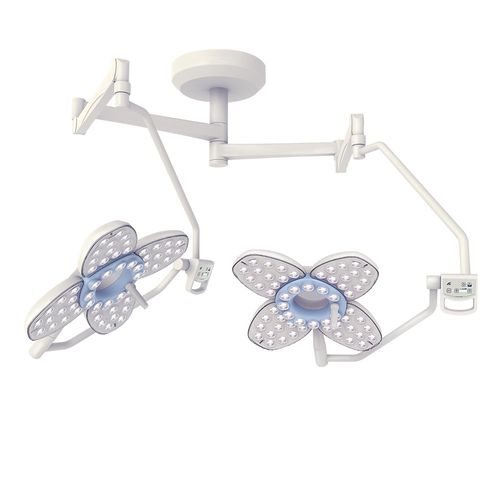

Technical data EXLED6500/6500
Head Diameter(mm) 600
Light intensity Lux at 1 meter distance(Max) 160000
Colour rendering index Ra ≥97
Diameter of spot(incm) ≥28cm
Colour temperature(Kelvin) 4500±500
Adjust range 10-100%
Life-span of the LED >50000h
1.Product Functions Description
EXLED Operating Lamp with Laminar Flow
Disturbance design to make fresh laminar air available to moves easily along the streamline of the operating lamp.
2.Illumination and illumination depth adjust freely
Lighting in the range of 10%-100% can be freely adjusted ,it adopts unique optical and focusing technology to produce super-long illumination depth of 800-1500mm.
The lamp color temperature was controlled at 4000-500K,which is the natural white light needed in the operation, the patient’s department is presented clearly
4.The electric light spot focusing(standard)
control modules are set on the lamp, the touch switch is connected with the control module. When touching the touch switch,it controls different projection angles to realize the adjustment of the light spot.
5. Automatic Shadow Management Model(optional)
Providing automatic brightness compensation for blocked light sources to maintain the best shadowless effect for surgeons.
