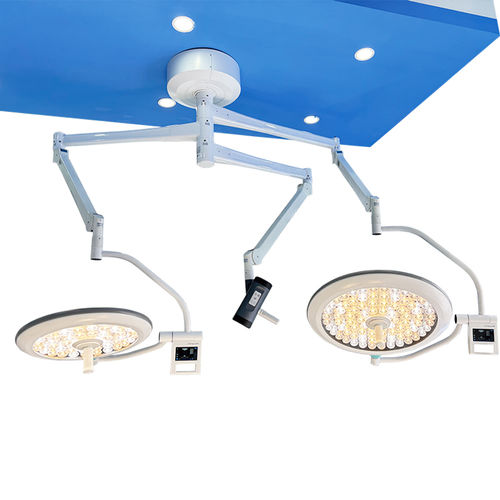

Surgical light with video camera KS-7050+Cceiling-mountedLED3-arm
Add to favorites
Compare this product
Characteristics
- Configuration
- ceiling-mounted
- Light source
- LED
- Number of arms
- 3-arm
- Power source
- 110V / 60Hz, 220V / 50Hz, 230V / 50Hz
- Color rendering index
- 96, 97, 95, 98, 99
- Options
- with control panel, with video camera, with video monitor, with battery
- Power
Min.: 60 W
Max.: 100 W
- Intensity at 1 m
140,000 lx
Min.: 40,000 lx
Max.: 160,000 lx
- Color temperature
Min.: 3,500 K
Max.: 5,000 K
- Lifetime of bulbs
60,000 h
Min.: 50,000 h
Max.: 60,000 h
Description
Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, The doctor's head temperature is less than 1 ℃. The color rendering performance is good,Excellent color temperature consistency.
Focuses on ultimate intelligent control, precise color management, and highly integrated digital solutions. Ideal for digital operating rooms and fine surgical procedures.
Revolutionary Sterile Digital Intelligent Handle
Key Highlight: The handle features an integrated, detachable design that is autoclavable (sterilizable).
Sterile Touch Control (STC): Surgeons can independently adjust light field size, color temperature, and intensity via touch-sensitive zones on the handle, eliminating dependence on non-sterile personnel and greatly improving efficiency.
Active Shadow Management
Equipped with an Active Shadow Management System: When a surgeon's head obstructs the main light, the system automatically senses this and adjusts the output of the satellite light head to compensate for the blocked illumination in real-time.
Integrated 4K Imaging System
Standard configuration includes a SONY high-performance CMOS sensor and a 4K medical display.
Interchangeable Design: The camera module can be swapped with the STC handle, offering flexibility to meet different imaging needs in various surgical scenarios.
Precise Color and Visual Optimization
Digital Dimming Technology: Adjusts color temperature (3500-5500K) to enhance tissue differentiation or alleviate visual fatigue.
Eye-relaxing Light: Reduces the contrast between the surgical site and the peripheral region to minimize eye strain.
Offers GREEN/Blue/White ambient light modes, particularly beneficial for endoscopic surgeries to improve monitor viewing.
Surgical Mode Memory and Customization
Built-in with 6 preset surgical modes (e.g., Orthopedics, GYN, General) and 6 user-defined modes.
One-touch customization: Surgeons can save their preferred settings for brightness, color temperature, and spot size, allowing for quick transitions between different surgical rhythms.
Focuses on ultimate intelligent control, precise color management, and highly integrated digital solutions. Ideal for digital operating rooms and fine surgical procedures.
Revolutionary Sterile Digital Intelligent Handle
Key Highlight: The handle features an integrated, detachable design that is autoclavable (sterilizable).
Sterile Touch Control (STC): Surgeons can independently adjust light field size, color temperature, and intensity via touch-sensitive zones on the handle, eliminating dependence on non-sterile personnel and greatly improving efficiency.
Active Shadow Management
Equipped with an Active Shadow Management System: When a surgeon's head obstructs the main light, the system automatically senses this and adjusts the output of the satellite light head to compensate for the blocked illumination in real-time.
Integrated 4K Imaging System
Standard configuration includes a SONY high-performance CMOS sensor and a 4K medical display.
Interchangeable Design: The camera module can be swapped with the STC handle, offering flexibility to meet different imaging needs in various surgical scenarios.
Precise Color and Visual Optimization
Digital Dimming Technology: Adjusts color temperature (3500-5500K) to enhance tissue differentiation or alleviate visual fatigue.
Eye-relaxing Light: Reduces the contrast between the surgical site and the peripheral region to minimize eye strain.
Offers GREEN/Blue/White ambient light modes, particularly beneficial for endoscopic surgeries to improve monitor viewing.
Surgical Mode Memory and Customization
Built-in with 6 preset surgical modes (e.g., Orthopedics, GYN, General) and 6 user-defined modes.
One-touch customization: Surgeons can save their preferred settings for brightness, color temperature, and spot size, allowing for quick transitions between different surgical rhythms.
