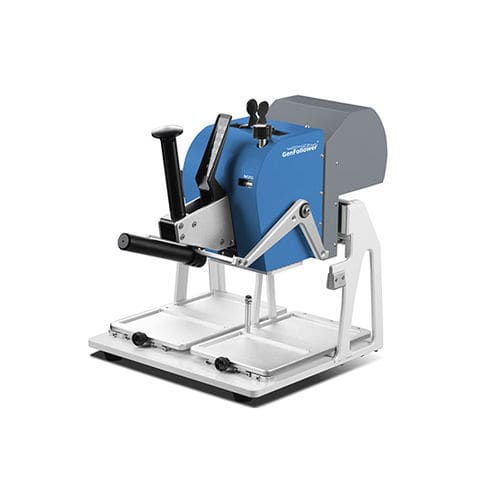

Manual laboratory workstation M20

for liquid handlingpipettingcompact

This M20 simplifies the work of micro-applications such as ELISA, cell analysis, QPCR and protein crystallization during the pipetting 96 holes. It is ergonomically designed, purely manual and virtually without training. Technical Features: Volume range 0.5 – 20 μl. High-throughput pipetting pefectly fit in 96-well plates and 384-well plates. High reproducibility ensures the accurate experiment data. Simple to use with no programming, no plug-in and no training. Compact size make it suitable for use in any laboratory. Four SBS footprint operating positions. Technical parameters: Range - 0.5μL-20μL SLAS/ANSI Position - Four Product Size(L×W×H) - 320×450×390mm Weight - 13.5kg Volume increment - 0.02μL Pipetting Technology - Air-cushion Power Requirements - N/A Accuracy - ± 1.5% Precision - ≤1.0% The accuracy and precision of our products are tested according to internal SOP . Conditions of testing are as follows: Location: QA Lab Ambient Temperature: 15℃~24℃ The Relative humidity: 55%~75%, incondensable The Air Pressure: 860hPa~1060hPa Tested Liquid: 20℃ distilled water Pipetting tips: Ultra low retention pipette tips Pipetting type: Forward technique Replace the pipetting tips in each test.
