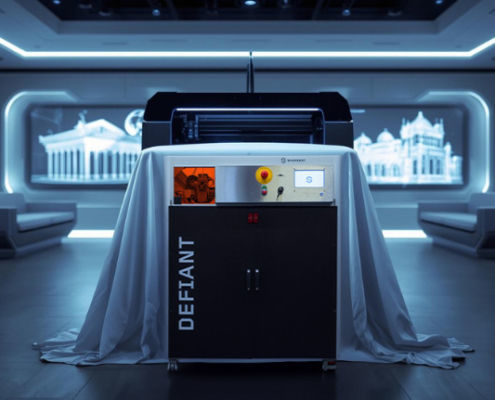

Laboratory 3D printer DEFIANT

for orthopedic insole manufacturingfor scoliosis bracesfor research and development

Product overview
Professional large-format filament 3D printer for engineering, architecture and R&D applications. DEFIANT is designed for companies and institutions that need one-piece large prototypes, architectural models or functional engineering parts—offering industrial-grade extrusion up to 350 °C and a 600 x 600 x 600 mm build volume in a compact footprint suitable for professional environments.

Highlights

• Large-format printing: 600 x 600 x 600 mm build volume
• Interchangeable nozzles: 0.4 mm standard (0.6 mm and 0.8 mm optional)
• High-temperature extrusion: up to 350 °C; compatible with PLA, PETG and PETG-Carbon
• Smart & connected: 7″ touchscreen, integrated camera, Wi‑Fi, LAN and USB; remote monitoring and control via Moonraker
• Open & flexible: full parameter access, Klipper firmware, optimized for OrcaSlicer
• Professional design: compact machine footprint (650 x 650 x 650 mm), robust construction (≈100 kg), CE certified

Zero stress, maximum reliability

• One-click automatic bed leveling
• Automatic resume after power outage
• Intelligent filament sensor
• Automatic shutdown at print end
• Tempered glass bed for improved adhesion

Technical specifications
Model name: DEFIANT
Technology: FDM / FFF (filament based)
Build volume: 600 x 600 x 600 mm³
Nozzle sizes: 0.4 mm standard; 0.6 mm and 0.8 mm optional
Max extrusion temperature: 350 °C
Max build plate temperature: 100 °C
External dimensions: 700 x 700 x 700 mm
Machine footprint: 650 x 650 x 650 mm
Weight: 100 kg
Build chamber: Semi-closed
Extruder: Single head
Bed: Tempered glass
Safety: Emergency stop button
User interface: 7" touchscreen
Camera: Internal webcam for remote monitoring
Connectivity: USB, LAN, Wi‑Fi
Industry 4.0 readiness: Web interface and API (Moonraker)
Firmware: Klipper
Recommended slicer: OrcaSlicer
Compatible materials: PLA, PET, PET-CF (PET + 10% carbon)

Compatible materials (summary)
PLA — Composition: polylactic acid — Spool examples: Basic 750 g; Big 2,200 g; XXL 4,000 g
PET — Composition: polyethylene terephthalate — Spool examples: Basic 750 g; Big 2,200 g; XXL 4,000 g
PET-CF — Composition: PET + 10% carbon fiber — Spool examples: Basic 500 g; larger spool sizes as available

Notes
All FFF printers include filament sensor and automated bed calibration. System designed for continuous, professional use with remote monitoring and Industry 4.0 integration.
