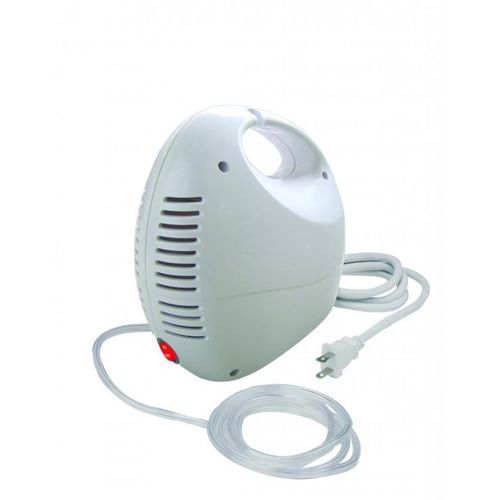

Electro-pneumatic nebulizer A500LW08
with compressor

electro-pneumatic nebulizer
electro-pneumatic nebulizer
electro-pneumatic nebulizer
Add to favorites
Compare this product


Characteristics

Type
electro-pneumatic
Accessories
with compressor

Description

A500LW08 is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled. Features: 1. Use hign quality motor, guarantee long time continous works. 2. Dual safety fuse on motor and power cord for more safety. 3. Powerful and silent A500LW05 piston type compressor ( 0.36 Mpa pressure). 4. Produces a high–quality respiratory aerosol with extremely low residual. 5. Sound Level ≤ 55dB 6. Built-in nebulizer holder. Standard Accessory: Nebulizer bottle; Air tube; Mouth-piece; Filter (5pcs); Adult mask; Child mask Optional Accessory Baby pacifier inhaler, Bag Power 100V@60HZ,120V@60HZ,230V@50HZ,220V@60HZ Power Consumption 180 VA Max Sound Level lower than 55 dB Compressor Pressure Range 29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar Operating Pressure Range 10 to 16 Psi / 70 to 120 Kpa / 0.7 to 1.2 bar Liter Flow Range 5.0 to 8.0 Lpm Operating Temperature Range 10°C to 40°C (50°F to 104°F) Operating Humidity Range 10 to 90% RH Storage Temperature Range -25°C to70°C (-13°Fto158°F) Storage Humidity Range 10 to 95% RH Medication Capacity 6ml / 10ml (cc) Partical Size 0.5-10 μm MMAD 3 μm Average Nebulization Rate faster than 0.2ml/min (2% saline solution) Dimension(L×W×H) 188mm×106mm×188mm Net Weight 1.3kg
