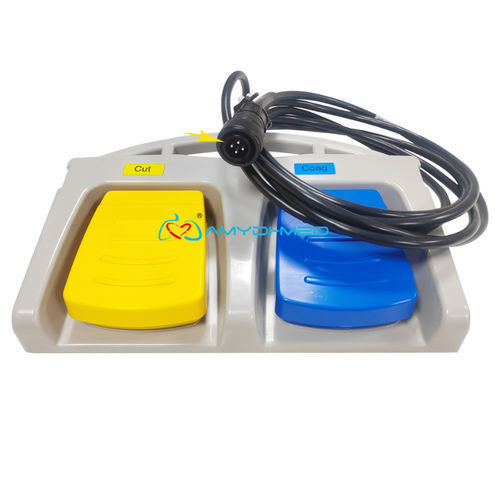

Cutting electrosurgical unit AMD-HE-PS6503-03-S

bipolar coagulationveterinary surgeryultrasonic

Electrosurgical Foot Switch Quick Detail: Product name: Electrosurgical Foot Switches Product model: AMD-HE-PS6503-03-S Compatible brand: This is For Valleylab Electrosurgical Generator. (We also have other brands for ERBE, Olympus,Wolf, Storz, stryker, Aesculap, Alsa) Monopolar or bipolar: Monopolar Pedal material: ABS Cable material: PVC Cable specification: 24AWG, 80°C, 300V, 4C X 0.2 mm² Cable length: 3m black Plug: Round 4 pin, support custom, and OEM & ODM Switching voltage: Max 25VAC / 60VDC, Max 250 Vac Switching current: Max 0.5A / Max 5A / Max 10A Switching power supply: Max 30VA / Max 1250 VA Logo: neutral or custom Waterproof standard: IPX8 Mechanical life: over 30,000 times Warranty: 12 months Electrosurgical Foot Switch Performance: The mechanical component of the foot switch withstands a force of 1350N. The life of the foot switch is more than 30,000 times. Working resistance: The working resistance in the closed state of the contact element should not be greater than 500MΩ. Withstand voltage test: can withstand 1500V, 60s withstand voltage test, no flash breakdown.
