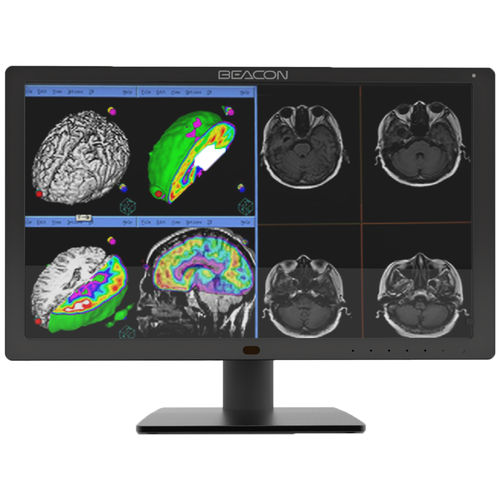

Diagnostic display C411W

medicalmedical imaging2560 × 1440

Product description
Implementing dual-screen display on a single monitor ensures consistent comparison of medical images across modalities, suitable for diagnostic and comparative analysis. The C411W uses touch buttons and is strictly DICOM-calibrated to accurately render medical images and fine details. An integrated backlight sensor monitors luminance to achieve rapid brightness stabilization at startup and maintain consistency over the product lifecycle.

Feature highlights

• Low Blue Light Technology: reduces over 50% of short-wave blue light to lower the risk of macular degeneration associated with long-term exposure.
• Split Screen Independent GAMMA: enables independent gamma/brightness adjustment for image and report regions so clinicians can view both concurrently without visual discomfort.
• DP-OUT Daisy: DisplayPort daisy-chain output allows connection to additional monitors for image expansion or duplication across multiple screens.
• Compliant with DICOM Standard: ensures precise rendering of subtle image details and consistency between displays and imaging modalities to support diagnostic accuracy.

Technical Specification
Product model: C411W
Product name: 4MP integrated dual-screen medical display
Display size: 27"
Resolution: 2560×1440
View angle: 178° Typ.
Brightness: 550 cd/m² Typ.
Contrast ratio: 1000:1 Typ.
Input signal interface: DVI-D: 24 pin×2; DisplayPort: 20 pin×2; USB ×1

Characteristics / Technical specifications

• Model: C411W
• Product name: 4MP integrated dual-screen medical display
• Display size: 27"
• Resolution: 2560×1440
• Viewing angle: 178° (typ.)
• Brightness: 550 cd/m² (typ.)
• Contrast ratio: 1000:1 (typ.)
• Input interfaces: DVI-D (24 pin) ×2; DisplayPort (20 pin) ×2; USB ×1
• Features: dual-screen on one monitor; touch buttons; strict DICOM calibration; integrated backlight sensor; low blue light technology; split-screen independent gamma; DP-OUT daisy-chain
