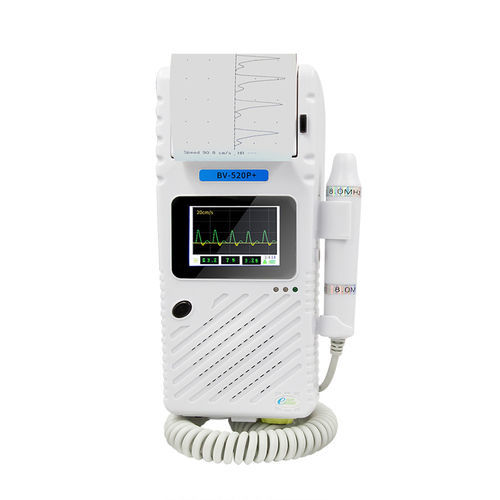

Pocket doppler BV-520P+

ABITBI

Ultrasound Doppler Flow Detector is an instrument that provides detection of blood flow velocity and amplitude. It is suitable for measuring blood flow velocity in arterial and venous blood vessels or other parts of the body, and is mainly used for the detection of human arterial blood flow conditions and peripheral vascular diseases (ABI), with ultra-high sensitivity. Product Application: Mainly used for human arterial vascular condition and peripheral vascular disease (PAD) detection, applicable to urology, male, surgery, orthopedics, trauma surgery, vascular surgery, burns and plastic surgery, endocrinology and so on. Technical specification : ● Implementation of the standards: YZB / Guangdong 1615-2012 ● Category: BF type of equipment ● Security Classification: internal power class ● Operating modes: continuous operation ● Band: The host: 200 ± 80 ~ 5000 ± 1000Hz ● Probe: 350 ± 80 ~ 2500 ± 500Hz ● External Output: Speaker ● Transmit waveform : sine ● Ultrasonic frequency: 8.0MHz ± 10% ● Average sound intensity ultrasonic power: ≤ 50mW / cm2 ● Speed range: not narrower than 40cm / s - 200cm / s ● velocity error: ≤ 20% (relative error) ● System gain:> 100dB ● Audio bandwidth: 0.2 KHz ~ 7.0 KHz ● Display: 320 x 240 dot TFT ● Power Supply: AC-DC work. (AC 220V/110V adapter; DC 9V /5000mA power,built-in lithium battery) ● Total power consumption: <50W; ● Continuous working time: ≥8 hours Main features : ●8.0MHz+10%bidirectional blood flow probe can detect arterial blood flow simultaneously; ● 2.4inches TFT display can display the blood flow waveform,average blood flow velocity and pulse rate value; ● Host has the function of built-in storage,can store a large number of blood flow waveform, can print out at any time; ● Can setthe direction of the probe,mode frequency,voice,unit scale,waveform,data etc ● Built in data interface,the host can also be used alone,can also be connected to the use of computers; ● Ultrasonic Doppler bidirectional blood vessel analysis and diagnosis software is optional ● Bidirectional blood flow curve are optional;bidirectional displayspeed curve can be set into two modes ● The display/separation mode and the combined flow velocity pattern are easy for doctors to use; ● BV-520P has built-in thermal printer,can print the blood flow waveform synchronously. and also can be transferred out of memory ● Printing preserved blood flow waveform;
