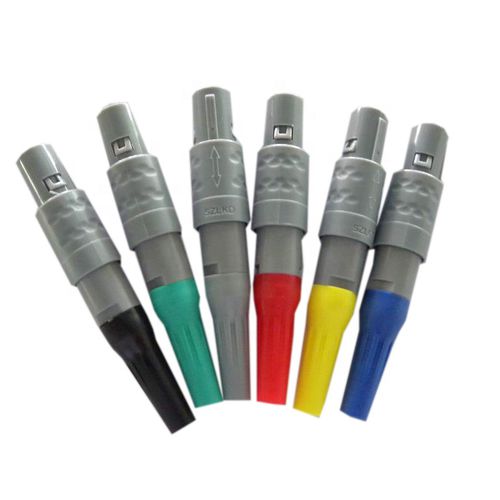

Male-female connector FGG

for cablespush-pullstraight

Type: Other Place of Origin: Guangdong, China Housing Materia: PSU IP Degree: IP50 Application: Lighting, Electrical Connector Supply Ability Supply Ability 50000 Piece/Pieces per Month Product Description Plastic Connectors for your selection: 1P Plastic Series: 2 3 4 5 6 7 8 9 10 12 14 Pin 2P Plastic Series: 2 3 4 5 6 7 8 10 12 14 16 18 19 Pins P series Plastic push pull self-locking male connector Model(INT-P-TAA/B/C/H), two keys(alpha=40/60/80/170), multipins straight plug, cable collet MULTI-POLES SPECIFICATION Series P Plastic connector with the following main features: Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts. Lightweight and rugged materials, rapid push-pull locking system. Outshell-POLYCARBONATE (PC), Insulator-PPS, RoHs certified can be sterilized by gas or by steam. The contacts are gold-plated over brass. At least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics. A keying system combined with colour coding can be prevention of mismating. B series connectors provide the following main features: Security of the Push-Pull self-latching system Multiple key options to avoid cross mating keying system («G» key standard)of similar connectors for connector alignment 360° screening for full EMC shielding. multipole types 2 to 32 contacts High packing density for space savings
