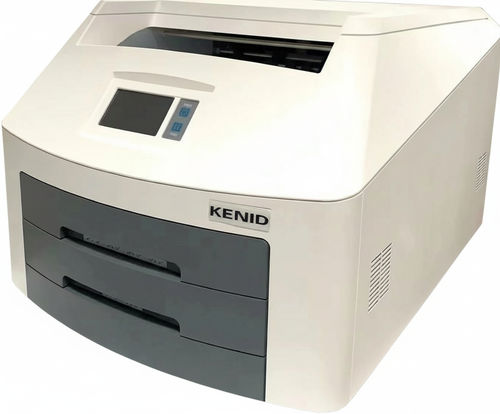

X-ray film printer KND 6320

KND6320 Dry imager is a kind of thermal imaging printer which can output the image in DICOM form internet. Equipment performance and technical parameters | Product Parameter | Specification | ------------------- | -------------------------------------------------------------------- | Geometrical | 508 dpi (20pixel/mm) | Film throughput | 70 sheets/hour (14” x 17”); 90 sheets/hour (8” x 10”) | Resolution | 14 bit | Film supply tray | 2 supply trays, 100 sheets per supply tray | Film Size | 8 x 10 inch, 10 x 12 inch, 11 x 14 inch, 14 x 17 inch | Film type | Medical thermal film | Film input cassette | All the film prepackaged in factory sealed input cassette | Port | 10/100 Base-T Ethernet (RJ-45) | Interface | DICOM3.0 | Image quality | Use the built-in densitometer automatic calibration | Image Control | Contrast/Grayscale/Polar/Rotate/Saturation/Scale | Control Panel | Light background LCD display, display online, alarm, fault and state | Key switch | Power supply and menu navigation button | Processor | Intel | Power requirements | 220V ± 22V AC/50Hz/600W | Weight | 45Kg | Work Temperature | 0°C - 35°C | Work Humidity | 35% - 90% | Storage humidity | 30% 至 95% | Storage temperature | -22 至 50°C | Base of the machine | Optional
