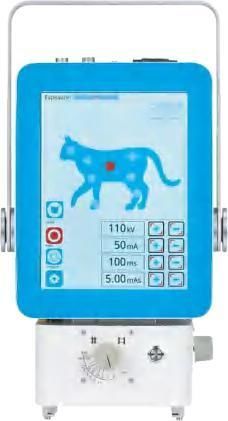

Portable veterinary X-ray system SMART20digital
Add to favorites
Compare this product
Characteristics
- Technology
- digital
- Ergonomics
- portable
Description
Product Overview
Our portable digital X-ray DR system is designed for clinical mobility and on-site diagnostic imaging. The compact unit supports bedside, emergency and mobile workflows while providing diagnostic-grade images and flexible power options.
Key Features
Applications
Emergency and trauma imaging, intensive care and bedside radiography, mobile clinics and field hospitals, orthopedic and intraoperative imaging, veterinary and dental radiography.
Detail Information
Brand Name: KEIND
Model Number: SMART20
MOQ: 1 set
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A
Place of Origin: CHINA
Certification: CE, ISO
Generator: 10KW / Max. 400mA
Voltage Range: 40-125KV
Mains Connection: 230V-50/60Hz, 1-phase
Detector: 43cm x 43cm / 17" x 17"
Sample: Samples Are Available
Transmission Time: ≤ 2 S
Type Of Detector: CCD
Voltage: 110V / 220V
Interface: DICOM Compatible, USB, Ethernet
Detectortype: Flat Panel Detector
Material: Stainless Steel
Power options: 10KW / 8KW / 6.3KW / 5.6KW
Imaging technology: Digital X-ray
Main Inverter Frequency: 40KHZ
Image processing: Advanced Image Enhancement Algorithms
Packing: 100 Sheets/box, 5 Boxes/carton
Powersupply: 110-240V AC, 50/60Hz
Power Source: Electricity
Highlights
10KW generator; 43cm x 43cm flat-panel detector; DICOM compatibility; portable DR system suitable for clinical, mobile and veterinary use.
Technical specifications
Our portable digital X-ray DR system is designed for clinical mobility and on-site diagnostic imaging. The compact unit supports bedside, emergency and mobile workflows while providing diagnostic-grade images and flexible power options.
Key Features
- Portable design for easy transport between departments and sites
- Digital flat-panel detector 43 cm x 43 cm (17" x 17") with fast transmission time ≤ 2 s
- 10 kW generator (max 400 mA) with selectable power configurations (10KW / 8KW / 6.3KW / 5.6KW)
- DICOM-compatible interface with USB and Ethernet for seamless PACS integration
- User interface with intuitive controls and advanced image enhancement algorithms
- Operates on 110–240 V AC, 50/60 Hz with mains options
Applications
Emergency and trauma imaging, intensive care and bedside radiography, mobile clinics and field hospitals, orthopedic and intraoperative imaging, veterinary and dental radiography.
Detail Information
Brand Name: KEIND
Model Number: SMART20
MOQ: 1 set
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A
Place of Origin: CHINA
Certification: CE, ISO
Generator: 10KW / Max. 400mA
Voltage Range: 40-125KV
Mains Connection: 230V-50/60Hz, 1-phase
Detector: 43cm x 43cm / 17" x 17"
Sample: Samples Are Available
Transmission Time: ≤ 2 S
Type Of Detector: CCD
Voltage: 110V / 220V
Interface: DICOM Compatible, USB, Ethernet
Detectortype: Flat Panel Detector
Material: Stainless Steel
Power options: 10KW / 8KW / 6.3KW / 5.6KW
Imaging technology: Digital X-ray
Main Inverter Frequency: 40KHZ
Image processing: Advanced Image Enhancement Algorithms
Packing: 100 Sheets/box, 5 Boxes/carton
Powersupply: 110-240V AC, 50/60Hz
Power Source: Electricity
Highlights
10KW generator; 43cm x 43cm flat-panel detector; DICOM compatibility; portable DR system suitable for clinical, mobile and veterinary use.
Technical specifications
- Generator: 10KW (Max. 400mA)
- Voltage range: 40-125KV
- Detector size: 43cm x 43cm (17" x 17")
- Detector type: Flat Panel Detector (CCD)
- Transmission time: ≤ 2 s
- Main inverter frequency: 40 KHz
- Power configurations: 10KW / 8KW / 6.3KW / 5.6KW
- Interface: DICOM compatible, USB, Ethernet
- Powersupply: 110-240V AC, 50/60Hz
- Material: Stainless Steel
- Imaging technology: Digital X-ray with advanced image enhancement algorithms
