Angiography contrast media injector C22

for CT scandual-head

Product overview

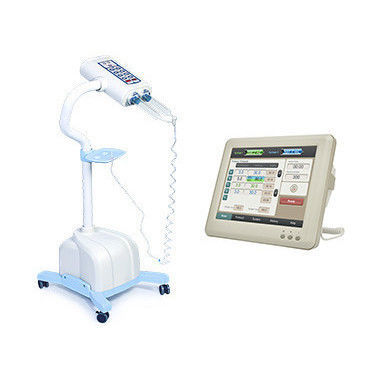

The kenid C22 is a dual-syringe CT contrast media injector designed for enhanced CT protocols. It supports disposable syringes of 100 ml (Zenith-C10) and 200 ml (C20), offers a flow range from 0.1 to 10 ml/s with 0.1 ml resolution, and programmable pressure limits for safe high-flow injections.

Commercial information

• Brand Name: kenid
• Model Number: C22
• MOQ: 1 unit
• Price: USD 1000/unit
• Payment Terms: T/T, Western Union
• Supply Ability: 5000 units per month
• Warranty: 12 months
• Certification: ISO13485, CE
• Packaging: 92×62×40 cm

Key features

• Dual-syringe design for sequential or simultaneous contrast delivery
• Flow rate adjustable from 0.1 to 10 ml/s in 0.1 ml/s steps
• Programmable pressure limits (50–350 psi) with safety cutoffs
• Support for 1 to 8 injection phases for multiphase CT protocols
• Relay I/O for scanner synchronization and external triggering
• Long-distance control box for monitoring from control or scanning room

Technical specifications

• Flow Rate: 0.1 to 10 ml/sec in 0.1 ml/sec increments
• Pressure Limits: Programmable from 50 to 350 psi in 1 psi increments
• Injection Capabilities: 1 to 8 phases
• Syringe Capacity: 100 ml (Zenith-C10); 200 ml (C20)
• Volume Resolution: 0.1 ml increments up to syringe capacity
• Highest delivery rate: up to 9.9 ml/s; Lowest: 0.1 ml/s
• Electrical: a.c. 198–242 V, 50/60 Hz, 200 VA
• Operation Interface Languages: English, French, German, Chinese

Applications

• Enhanced CT angiography and vascular studies
• Multiphase liver, cardiac and oncology CT protocols
• High-flow bolus injections for dynamic studies
